Guide Wire Nozzle/Guide Wire Needle for Coil Winding Industry

Product Description

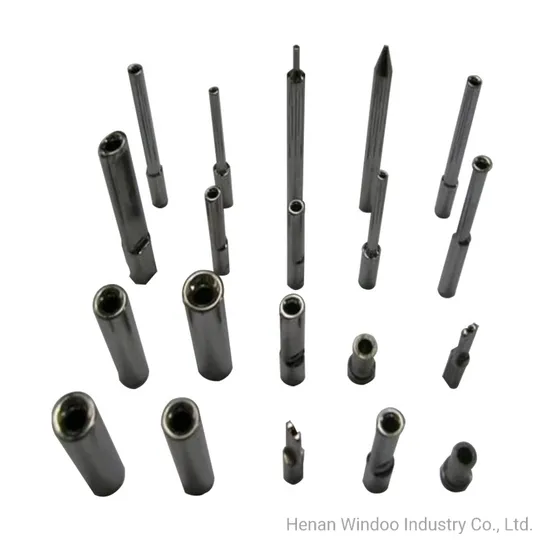

W series is made of ultra-fine grain tungsten carbide (superhard alloy). Hardness up to HRA90 above, bending up to 2300N/mm above. The company adopts special equipment for precision grinding processing and precision grinding processing of inner hole, so that the roughness of inner hole reaches Ra0.1, and the roughness of R at both ends reaches Ra0.025.The curvature radius of the inlet and outlet at both ends is designed scientifically to ensure smooth and natural crossing of the wire. Compared with the ruby wire nozzle, because of the integral material processing, there is no step in the wire nozzle hole, which improves the phenomenon of easy bending and blocking. Using superhard alloy material (its hardness up to HRA90, bending strength up to 2300N/MM or more) precision machining. The inner hole is processed by mirror, and the inlet and outlet at both ends are guaranteed to have a balanced curvature radius, and the surface roughness is RA0.025. Because of its use of integral material refined hole without steps.

P/N (part number)	type	Specifications (mm)
		L	L1	D	D1	D1	D2
1	W0202-2005-1505	15	5	2.0	0.5	0.2	0.2
2	W0202-2000-3300	33	*	2.0	*	0.2	0.2
3	W0202-3010-3015	30	15	3.0	1.0	0.2	0.2
4	W0202-3006-3010	30	10	3.0	0.6	0.2	0.2
5	W0202-3015-3015	30	15	3.0	1.5	0.2	0.2
6	W0202-3007-3508	35	8	3.0	0.7	0.2	0.2
7	W0303-3008-3012P	30	12	3.0	0.8	0.3	0.3
8	W0303-3012-3519	35	19	3.0	1.2	0.3	0.3
9	W0303-3008-4506	46	6	3.0	0.8	0.3	0.3
10	W0303-3020-3515	35	15	3.0	2.0	0.3	0.3
11	W0303-0800-3500	35	*	0.8	*	0.3	0.3
12	W0303-3018-4018	40	18	3.0	1.8	0.3	0.3
13	W0404-3010-3009	30	9	3.0	1.0	0.4	0.4
14	W0404-3007-4528	45	28	3.0	0.7	0.4	0.4
15	W0505-3012-4506T	45	6	3.0	1.2	0.5	0.5
16	W0606-3012-3520	35	20	3.0	1.2	0.6	0.6
17	W0606-3016-4010T	40	10	3.0	1.6	0.6	0.6
18	W0808-3018-3518	35	18	3.0	1.8	0.8	0.8
19	W0808-3018-3010	30	10	3.0	1.8	0.8	0.8
20	W1212-3022-3010	30	10	3.0	2.2	1.2	1.2

Frequently Asked Questions
1. Q: What is the minimum order quantity of coil winding accessories?
A: It depends on the product, for guide wire pulley -20PCS, nozzle -20PCS, other accessories samples
It is welcome.
2. Q: What is the delivery time of the coil winding accessory samples?
A: Accessories 3-5 days,
3. Q: What is the delivery time for mass production of coil winding accessories?
A: 7-10 days or depending on the quantity.
4. Q: What are the payment terms?
A: Letter of credit, Telegraphic transfer, order, PayPal, Western Union, small payment, speed draft
