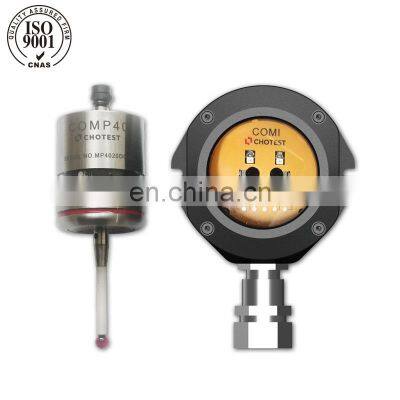

Product Overview PO40 Machine Tool ProbesMachine tool probe PO series applies 3-point trigger design which is the most stable structure. There is a trigger unit inside the probe. When the stylus is moved radially or axially by external force, the trigger unit is triggered. Then the circuit inside of probe sends a triggering signal to the receiver, and the receiver transmits it to the machine tool, consequently the present coordinates of each axis of the machine tool are recorded automatically. Finally measurement results are calculated according to the coordinate records of related points.FEATURES AT A GLANCE Product Functions1. Before CNC processing, automatically find the coordinate system and datum point of the workpiece.2. In CNC processing, automatically measure the key sizes and related coordinates to determine whether compensation is required or not.3. After CNC processing, automatically measure the sizes, shapes, and positions to qualify finished product.Products Features1. High repeatability: One-way repeatability <1μm2. Long standby time: As long as 6 months3. Omnidirectional energy-absorbing design: 360° omnidirectional energy-absorbing design, which help to cushion the spindle inimpact when an operating accident occurs4. Waterproof design: IP67 for probe and receiver5. Intelligent LED indicators: Show current working status of the probePRODUCT SPECIFICATIONS 1. Technical parameters of the probe:1) Battery: Two 1/2AA 3.6V lithium batteries;2) Storage temperature: (-25~70)℃;3) Working temperature: (5~55)℃;Model No.COMP40COMP60COLP40Size(Probe)Dia.40 mm× L50mmDia.63 mm× L76mmDia.40 mm× L52mmWeight(Probe Without Holder)260 g880 g280 gTransmission Type360° IR360° IR360° IRTransmission Distance5m6m5mStarting Mode: Code MCode MCode M, RevolveCode MRotational SpeedMax 1000rev/minMax 1000rev/minMax 1000rev/minTriggering Direction±X/±Y/+Z±X/±Y/+Z±X/±Y/+ZRepeatability of One-way triggering 2δ(1)1um2um1umMax overrun(2)XY:12.5mm +Z:6mmXY:12.5mm +Z:6mmXY:12.5mm +Z:6mmXY Trigger Force(3)0.5 N~0.9N0.5 N~3.5N Adjustable0.3N~1.6N AdjustableZ Trigger Force5.8N3.5N~14N Adjustable4N~10N Adjustable*Note(1): Test with a 50mm straight stylus under speed 480mm/min.(2): Test with a 50mm straight stylus(3): Test with a 50mm straight stylus under speed 480mm/min.2. Technical parameters of the receiver:1) Transmission type: IR, 360°;2) Working range: Max 8m3) Weight: 926g4) Input voltage: 12V~30V5) Input current: <100mA, receiving <40mA;6) Cable to machine controller: dedicated 13PIN shielded cable, 8 meters or 15 meters;7) Storage temperature: (-25~70)℃,working temperature: (5~55)℃;Products Application 1. Coordinate setting: set datum point of workpiece, correct coordinate system of workpiece. 2. Align workpiece: Inspect whether the workpiece is placed accurately, and whether the workpiece is deformed by force of clamping fixture.3. Dimension measurement: stage height, length, diameter4. Position measurement: holes distance, perpendicularity, angle, etc.5. Curved-surface measurement: blade shape, mold surface, complex shape6. After-processing inspection: Find the over-tolerance, correct tool compensation7. Check whether the workpiece is placedProduct packaging Why Choose Us Who is CHTEST?CHOTEST is not only a software company but also a national high-tech enterprise integrating research, development, production and sales, which is specialized in designing and producing precision measurement instruments, calibration instruments and laser length measuring device. The company has 2,000 square meters of modern office well equipped with advanced research facilities. In addition, it owns 5,000 square meters of precision machining and assembly factory. All products are manufactured in accordance with ISO9001 standard. The company is always living up to the motto that is providing our customers with top quality products. At present, the company has dozens of self-developed products with new technology, widely used in government Metrology and Quality Inspection agencies, international military, automotive, aerospace, machinery, metallurgy, electric power, petrochemical and otherindustries. The company also has involved in developing a number of national standards and has made its due contribution for China's metrology and testing technology progress. CHOTEST focuses on technology development of precision measurement equipments and sophisticated testing equipments. It constantly challenges to all kinds of technical barriers and technology monopoly. The goal of the company is to provide high-end measuring equipments to manufacturing industry in all over the world.FAQ 1. Are you factory?Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.2. How many years experience do you have?We have 16 years experience on measurement instruments and calibration instruments since 2002. 3. What size of your factory?We have 5000 square meters of factory and 2,000 square meters of modern office 4. Can you accept OEM and ODM?No, we only sell the products under Chotest brand. 5. Can I become your distributor of Machine Tool Probes?Yes, please contact our sales engineer. 6. What is the lead time?Lead time is 30-60days in usual. 7. What is your payment term?30% deposit first, balance payment before delivery. We accept T/T, L/C. 8. How to install the machine?We dispatch our engineers to install and debug the machine in site of the customer. 9. What is your warranty term?We provide 1 year warranty after acceptance inspection by customer.Free repair or replacement in 1 year warranty in case of any problem.Response in 12 hours for emails or calls from customers in working days.
>>
