Poe Splitter Outdoor Waterproof Model 48V to 12V

Product Description

Overview

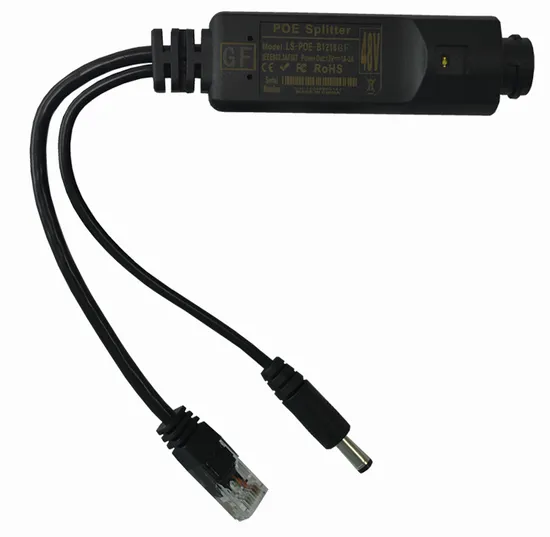

TS4812WP is a single port poe Splitter, it is support IEEE 802.AF standard, maximum up to 15watts of power output over UTP cables. It is designed specially to fill the demand of the micro usb power input products such as ipad,phone or tablet..The TS4812WP is a ideal solution to delivering data and power to network devices directly via the RJ45 port interface without the need of installing extra power outlets and electrical cabling.
Isolation type To avoid damage the ipad and phone
Specification

Standard	IEEE 802.3, IEEE 802.3U, IEEE 802.3X,IEEE 802.3AF
Port	10/100M RJ45
	1 DC 2.1/5.5MM
Media	10BASE-T:3/4/5 UTP CABLE(≤100m)
	100BASE-TX: 5 UTP CABLE(≤100m)
LED indicator	POWER
DC output	12V,1.2A
RJ45 POE POWERED	4,5+;7,8- pair
	1,2+;2,6-pair
Size(L*W*H)	88*30*26mm
Operating Temp.	-10ºC-45ºC
Storage Temp.	-40ºC-70ºC
Operating Hum.	10%-90%,No condensation
Storage Temp.	5%-90%, No condensation
EMC	CE Mark,Commercial, FCC part 14 Class B

---
