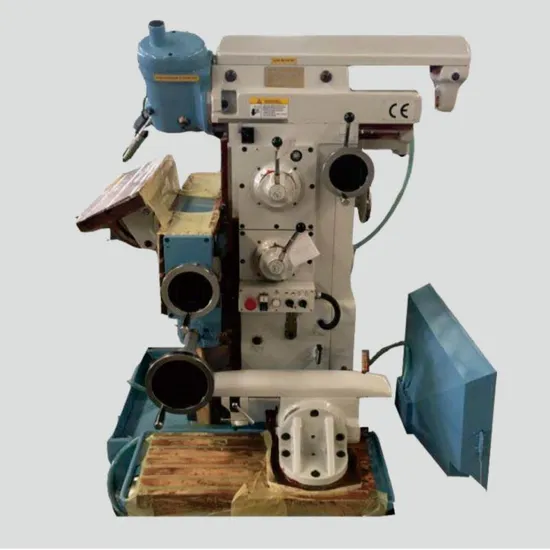

Universal Tool Milling Machine. Designed to Be a Universal Tool Milling Machine

Product Description

Product Description
Application of machine:
This machine is designed to be a Universal Tool Milling Machine,can perform procedures such as milling,boring, drilling,and slotting,etc.,and is suitable for machining cutter, Fixture,die and mould,and other components with complex Figuration.With the aid of various special attachments.it can Machine all kinds of components such as spiral src,gear,rack Spline,and so on.
Features:
1, Original structure,broad versatility,high accuracy,easy to operate.
2, With various attachments to extend range of application and raise utilization
3, Model X8126B/C with programmable digital display system resolving power is uo to 0.01mm. Product Parameters

Mainspecifications X8126B X8126C
		Area of table(WxL)		280×700mm
		Distance between axis of horizongta spindle to table	First installation position	35-385mm
			Second installation position	42-392mm
			Third installation position	132-482mm
		Distance between vertical spindle nose to horizontal spindle axis		95mm
		Distance between horizongtal spindle nose to vertical spindle axis		131mm
		Transerse travel of horizongtal spindle		200mm
		Verticai travel of verticai apindle quill		80mm
		Range of horizontal spindle speed range (8 steps)		110-1230rpm
		Range of vertical spindle speed range (8 steps)		150-1660rpm
		Spindle taper hole		Morse No.4/ISO40
		Swivel angle of verticai spind axis		±45
		Longitudinal travel of table		350mm
		Vertical travel of table		350mm
		Feeds of table in lingitudinal and vertical directions and horizontal spindle seat in transverse direction.		25-285mm/min
		Rapid travel of table in lingitudinal and vertial directions		1000mm/min
		mainmotor		3kw
		Coolantpumpmotor		0.04kw
		Overalldimensions(L×WxH)		145×145×165cm
		Net weight/gross weight		B-1180/1400kg C-1200/1420kg
		Packing dimensions fou export		170×127×198cm

The following special accessories are available if ordered:
1, Univereal table
2, Rotary table
3, Parallel vice
4, Dividing head
5, Slotting head Company Profile
