| US$26,000.00-33,000.00 | 1 Set (MOQ) |
| (1) 5Tons manual un-coiler | |
| Description | There are different choices, please turn to the catalogue of un-coiler |
| (2) Entry bench & Manual Pre-shearing device | |
| Function | Smart cut control, to cut off the end of the final piece of sheet only |
| Shearing Thickness | Up to Max. 0.8mm (if thickness > 0.8mm, then hydraulic pre-shearing device or electric pre-shearing device instead ) |
| (3) The general machine parameter | |
| Suitable roll forming material | Color steel sheet or Aluminum |
| Thickness | 0.4mm-0.6mm |
| Feeding width | 1219mm |
| Frame design | Wall-plate-frame-design /New-stand-frame-design |
| Roll stages | 18 stages |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75 mm |
| Main motor power | 7.5KW with reducer |
| Max. Line speed of roll former | Approx. 4m/min (stair length 350mm, production length 6m) |

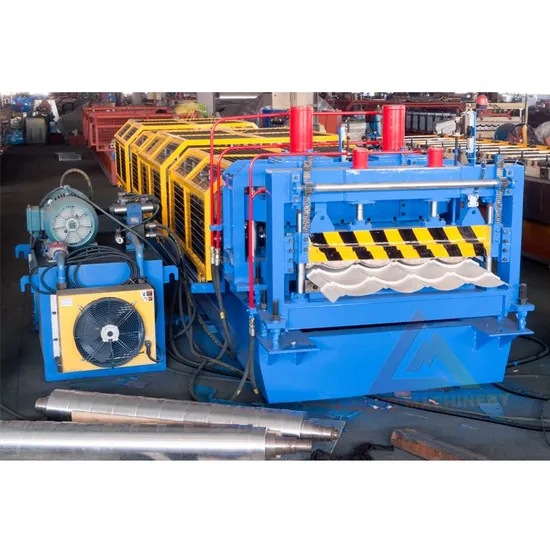

| Hydraulic Stair-Drawing & Cutting Device | There is one hydraulic press to make the stair according to requirement and hydraulic post cut for cut off |
| Hydraulic group power | 11KW |
| Material of cutting blade | Cr12, heat treatment |
| Electric Standard | 380V /50Hz/3PH or as the customer's requirements |
| Machine Dimensions | 9430mm×1960mm×1650mm |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer's requirements |
| (4) PLC Control system | |
| PLC | Siemens brand |
| Touch Screen | Siemens brand |
| Inverter | Schneider brand |
| Encoder | Omron brand |
| (5) Product rack | |
| Description | un-powered, 3 units |
| (6) Options for tile roof : A.Hydraulic pre-shearing device B.Improvement for driving system for Tile roof Servo motor instead of AC motor for the roll former, to increase the production speed and the tolerance between two stairs Driving system with gear box and redirector for every three/four stages to improve the speed and tolerance control. Sprocket driving between each three/four stages. | |
