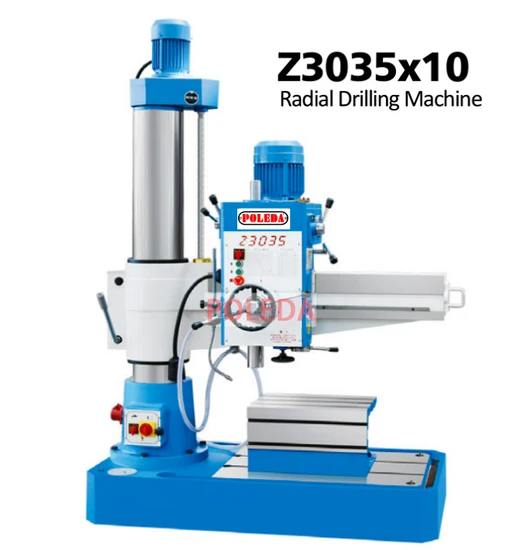

Z3050 Hydraulic Radial Drilling Machine with High Performance and High Precision

Product Description

Product Description
Rocker Arm Drill Product Introduction
The radial drilling machine is a quintessential piece of hole processing equipment, primarily designed for precision tasks such as drilling, reaming, tapping, and face trimming. This versatile machine excels in both single and mass production scenarios, especially when dealing with large parts featuring multiple holes. Its widespread application makes it a staple in general machining workshops. Key features of the radial drilling machine include:
Structural Features: The rocker arm of this machine can rotate and ascend or descend around a central column, while the spindle box slides horizontally along the rocker arm. Such an ingenious design offers effortless operation, exceptional flexibility, and a broad spectrum of applications, making it ideal for handling large and heavy workpieces with ease.
Classification: Based on clamping structures, radial drilling machines are categorized into hydraulic and mechanical types. Additionally, these machines can be further tailored into various models and specifications according to different drilling sizes and mechanical principles, providing solutions for a multitude of processing needs.
Technical Parameters: The radial drilling machine's performance is defined by parameters such as maximum drilling diameter, the distance from the main shaft to the column, the proximity of the spindle end face to the working table, and spindle rotation speeds. These critical parameters shape the machine's capacity and operational efficiency.
Safety Performance: This machine is equipped with robust safety measures, including spindle overload protection devices, travel limit switches for the spindle, and safety nuts for lifting screws, all ensuring secure and reliable operation.
Application: Widely embraced across machining departments, the radial drilling machine adeptly handles a variety of tasks, from drilling and reaming to countersinking and tapping. It stands as an essential tool in machining and production, fulfilling diverse processing demands.
Operation and Maintenance: Offering both manual and numerical control options, the radial drilling machine also features mechanical and hydraulic transmission modes. Proper operation and diligent maintenance are crucial in maintaining peak machine performance and extending its longevity.
In summary, the radial drilling machine represents a multifunctional, efficient, and safe solution for hole processing. It is indispensable for the production and processing of various metal parts, holding a vital place in modern machining workshops.
Product Parameters
Rocker Arm Drill Product Performance
The radial drilling machine, a cutting-edge series of multifunctional products, boasts impeccable performance. It is renowned for its safety, reliability, convenience, easy maintenance, precision, rigidity, and extended lifespan. Utilizing hydraulic primary variable speed mechanisms, it minimizes auxiliary time, and features spindle stop, reverse, and braking capabilities, all with the ease of handle control. The spindle box, rocker arm, and columns benefit from hydraulically-driven diamond block clamping, ensuring steadfast clamping. The machine's rocker arm guide rail, outer column surface, spindle, and raceways are meticulously quenched, maintaining precision stability and prolonging service life. Additionally, the radial drilling machine is fortified with comprehensive safety and external column protection devices to guarantee secure operation.
Classified by clamping structure, radial drilling machines are categorized into hydraulic and mechanical types. The hydraulic radial drilling machine, with its agile and convenient operation, is highly versatile. It's particularly suited for single or mass production involving large parts with multiple holes, establishing itself as a crucial machine tool in general machining workshops.

Product Name	Radial drill	Radial drill	Radial drill
Product model	3040*13/16	3032	Z3050*13/16
Maximum diameter of hole	casting40/Steel part35mm	casting32/Steel part27mm	casting50/Steel part45mm
Distance from spindle end face to table	430-1210mm	360-1050mm	360-1300mm
Distance from spindle center to column busbar	300-1100mm	260-1050mm	260-1050mm
Spindle travel	220mm	120mm	220mm
Main shaft hole cone	4Mohs	4Mohs	4Mohs
Spindle speed range	34.78.145..75130.560.260.430.920.380.760.1280rpm		34.78.145..75130.560.260.430.920.380.760.1280rpm
Spindle speed class speed	12	6	12
Spindle feed range	0.10-0.25rpm	0.10-0.25rpm	0.10-0.25rpm
Spindle feed series	3	3	3
Swing arm rotation Angle	Plus or minus 180 degrees	Plus or minus 180 degrees	Plus or minus 180 degrees
motor power	2.2kw	1.5kw	4kw
Machine weight	1400kg	9600kg	2400kg
Overall dimension	1500*705*2020mm	1350*705*1880mm	1950*810*2450mm

Detailed Photos
Certifications
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.

---
