High-Efficiency and Energy-Saving Injection Molding Machine Hxm228

Product Description

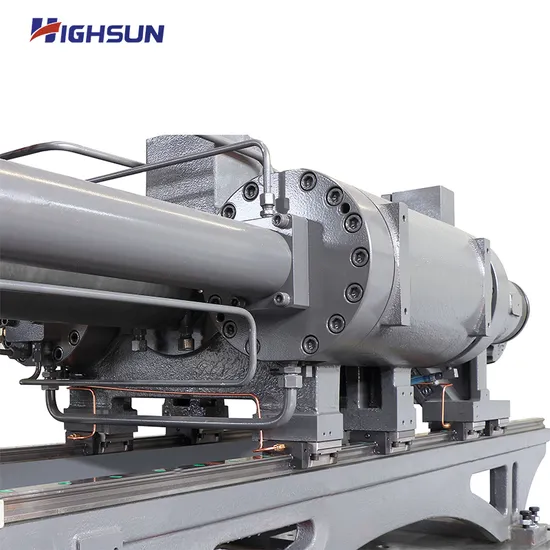

1.Picture

MODEL:HXM228
TECHNICAL PARAMETER TABLE			A	B	C	D
INJECTION UNIT	SCREW DIAMETER	mm	45	50	55	60
	SCREW L/D RATIO	L/D	22	20	19	19
	INJECTION CAPACITY IN THEORY	cm3	349	431	522	622
	INJECTION WEIGHT(PS)	g	324	400	485	566
		oz	11.4	14.1	17.1	19.9
	INJECTION PRESSURE	MPa	229	186	153	129
	INJECTION RATE	g/s	167	206	219	297
	PLASTICIZING CAPACITY	g/s	20	26	33	40
	SCREW SPEED	rpm	200
CLAMPING UNIT	CLAMPING FORCE	KN	2280
	MOVING MOULD-PLATE STROKE	mm	520
	MAX. MOULD HEIGHT	mm	580
	MIN. MOULD HEIGHT	mm	200
	SPACE BWTWEEN TIE-BARS (W×H)	mm	570*520
	HYDRAULIC EJECTOR FORCE	mm	86
	HYDRAULIC EJECTOR STROKE	KN	150
	EJECTOR NUMBER	n	9
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR /DRIVING POWER	KW	30
	HEATING CAPACITY	KW	13.55
	MACHINE DIMENSION (L×W×H)	m	5.64*1.34*2.1
	MACHINE WEIGHT	t	7
	OIL TANK CAPACITY	L	281

Product Advantages:
a. Super energy saving
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor will reduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. Hiigh precision and high stability
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. High response and high efficiency
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for many famous companies
7.Client in Malaysia

---
