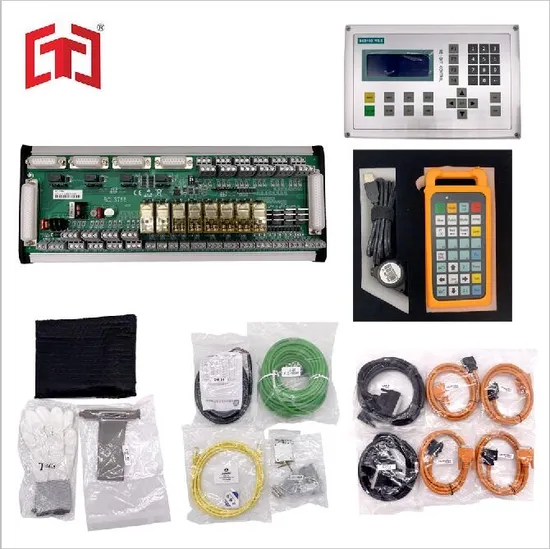

| Model | FSCUT3000S |
| Software | TubePro tube cutting software/ CypCut sheet cutting software |
| Control card | BMC1805 |
| I/O terminal board | BCL3766 |
| Motor control | X/Y1/Y2/W axis pulse output, heighest frequency 3MHz X/Y1/Y2 axis access encoder feedback, highest sampling frequency 10MHz W axis port can be assigned to rotary axis or autofocus unit |
| Dedicated inputs | 8 limit inputs:Positive and negative limit for X/Y1/Y2/W axis 4 origin inputs:X / Y1 / Y2 / W axis origin |
| Common inputs | 15 inputs: low-level active by default option, supports NO and NC mode. IN3~IN15 can switch between active low and active high |
| Software | CypOne Laser Cutting Control Software |
| Interface type | 32-bit PCI bus, 132MB/S |
| Power supply | 24V DC/2A |
| Work environment | Temperature: 0-55ºC Humidity: 5%-95%(no condensation) |
| Dedicated outputs | 2 DA outputs: 0~10V,50mA 1 PWM output: 5V/24V for option, precision of 50KHz (0.1%) |
| Common outputs | 8 relay output, load capacity 250V AC/5A, 30V DC/5A 12 thyristor output, load capacity DC 24V/500mA |
| Cutting technique | Support offset tube center error in production to improve through holes cutting precision. |
| Support steel channels cutting. | |
| Suppport seperate technique for corner cutting. | |
| Support auto loading/unloading process, cycle production and automatic tube feeding. | |
| Support all functions of FSCUT2000 system. | |
| Control performance | Open-loop control system, Friendess 5th generation motion control algorithms. |
| Trajectory accuracy 0.02mm, positioning accuracy 0.001mm, repeatability 0.003mm. | |
| Access encoder feedback in real time, to compare command and machine toolpath. |
