Plastic Rubber Tire Lump Plate Recycling Crushing Shredder

Product Description

Plastic Rubber Tire Lump Plate Recycling Crushing Shredder

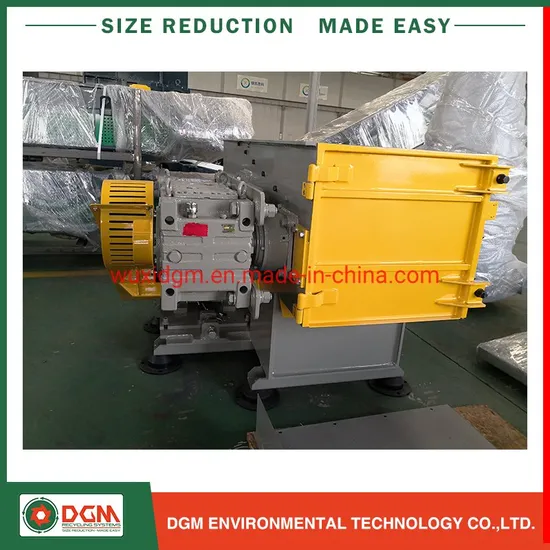

Descriptions The DGA Compact Single Shaft Shredder has a 251mm diameter profiled rotor made of solid steel, operating at a speed of 11.6~12.9rpm. The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which guarantees a high flow rate, low power consumption and maximum output of shredded material.
The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.
Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance.
Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.
A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
Specifications

ITEM		UNIT	DGA550	DGA850
Feeding Size		mm	580*900	880*900
Rotor Diameter		mm	251	251
Rotor Speed		rpm	90	90
Main Motor Power		kw	18.5-22	30
Rotor Knives		pcs	13 or 26	20 or 40
Stator Knives		pcs	2	2
Screen Size		mm	15-100	40-100
Machine Dimensions		mm	1894*1348*1723	1894*1648*1723
Dimensions	A	mm	1894	1894
	B	mm	1348	1648
	C	mm	580	880
	D	mm	1723	1723
	E	mm	1020	1020
	F	mm	620	620

Layout
Features Flat rotor Machined pocket knife holders Optional hard facing Concave ground square knives Robust ram construction Heavy-duty guide bearings Universal couplings Low speed, high torque geared drive Powerful hydraulic horizontal ram Bolt in driveshafts Multiple rotor designs Two-speed hydraulic system Oil cooling on ram and gearbox Ram comb plate Amp meter control
Options Hydraulic screen cradle Gearbox with shrink disc Rotor cooling Pipe spacer Touch screen PLC Hopper-mounted viewing mirror Increased motor drive Hydraulic drive Bespoke colour scheme Gearbox with shrink disc Turbo hydraulics Housing wear plates Sound absorbing hopper
Applications PLASTICS RUBBER WOOD BIOMASS PAPER ALTERNATIVE FUELS (RDF/SRF) DOMESTIC & COMMERCIAL WASTE
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved for CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect the plastic recycling machine from dust and moisture.
2. Plastic packing strap belts are used to fasten wrapping film and machines, and also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air, or international express.
4. Excellent logistic team to guarantee the shredder and granulators machines be safely shipped to customers appointed locations.
5. If you have any other requests for the packaging or loading, we will try our best to meet your demands.
FAQ
Q1: Are you a trading company or a factory?
DGM is a Factory with 15 years of experience in machinery manufacturing, and 25 years of experience in technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirements in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after- sale service. We have an international network that ensures wherever you are in the world you receive localized high-level support.
Our technical team has decades of experience in the field of size reduction and recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.10 Fushi Road, Huishan District, Wuxi City, Jiangsu, China.
Q5: what is your contact information?


Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.

---
