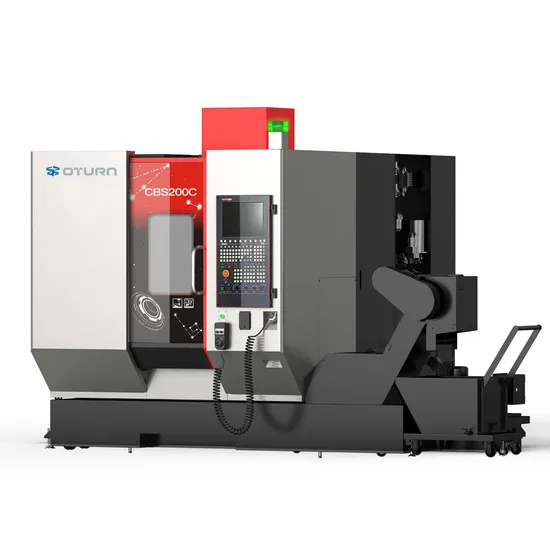

High Processing Performance CBS200c 5 Axis CNC Milling Machine

Product Description

Product Description
The high-speed precision five-axis bridge type machining center CBS200C developed has the characteristics of high rigidity, high precision and high efficiency processing. CBS series machine tools adopt a bridge structure layout, and the XYZ axis movement is not affected by the AC axis, which can maintain high-precision processing for a long time; the X/Y/Z/A/C axes are fully closed-loop control to ensure high-precision processing; the whole machine adopts finite element analysis Each component is designed to provide the best overall stable performance.
The three-axis rapid displacement is 48 M/min, the T-T tool change time is only 5 seconds, and the tool magazine is fully loaded for 24 hours without alarm. The running machine and the 3-dimensional inspection of each machine's trial processing sample ensure the high efficiency, continuous stability of the machine tool after leaving the factory. . It is suitable for various two- and three-dimensional concave and convex models with complex shapes that require 5-axis linkage for one-time processing. It is more suitable for both small and medium-sized batches of multi-variety processing and production, and can also be used in automatic lines for mass production.
Adopting latest C80 plus system, 15-inch large LCD display, dynamic graphic display of tool path, intelligent warning display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and faster; the high-speed bus communication method greatly improves the CNC system The data processing capability and control performance are improved, the program storage capacity is increased to 4G, and the pre-reading capability is increased to 3000 lines/second, which facilitates the fast and efficient transmission and online processing of large-capacity programs
Product Parameters

ITEM		CBS200C
Travel	X/Y/Z axis travel	300*350*250
	Spindle nose to table center	130-380
Spindle	Spindle taper	E40
	Max.spindle speed	30000
	Spindle power(continuous /S3 25%)	11/13.2
	spindle torque (continuous /S3 25%)	11.5/13.8
Feed rate	Rapid speed of (X/Y/Z)m/min	48/48/48
	mm/min Cutting feed	1-24000
Rotary table	Rotary table diameter	200*250mm
	Allowable load weight	20kg
	A axis tilting angle	±110
	C-axis rotation	360°
	A-axis rated/max speed	47/70
	A-axis rated/max cutting torque	782/1540
	C-axis rated/max speed	1500/2000
	C-axis rated/max cutting torque	15/30
	A positioning precision / repeat positioning precision	10/6
	C positioning precision / repeat positioning precision	8/4
ATC	Number of tool	16
	Max. tool diameter / length	80/200
	Max. tool weight	3
	Tool change time (tool to tool)	4
Three axis	X-axis guide (line rail width / number of sliders)	30/2
	Y-axis guide (line rail width / number of sliders)	35/2+30/2
	Z-axis guide (line rail width / number of sliders)	25/2
	X-axis linear motor thrust (continuous/max)	1097/2750
	Y-axis linear motor thrust (continuous/max)	3250/8250
	Z-axis linear motor thrust (continuous/max)	1033/1511
Accuracy	Positioning precision	0.005/300
	Repeating positioning precision	0.003/300
Power	Power supply capacity	30
	Air pressure	≥0.6Mpa ≥400L/min
Machine size	Machine size (LxWxH)	1920*3030*2360
	Complete machine size(LxWxH)	3580*3030*2360
	weight	4.8T

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
