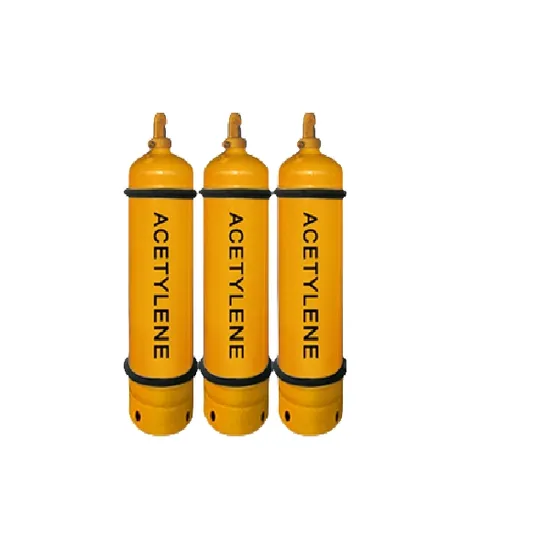

Factory Supply C2h2 Welding Gas Acetylene Gas in Acetylene Gas Cylinder Price

US$45.00-90.00 100 Pieces (MOQ)

Basic Info.

Model NO.
40L
Function
Storage Pressure Vessel, Heat Pressure Vessel, Reaction Pressure Vessel
Application
Gas
Material
Stainless Steel
Pressure
10.0MPa≤p<100.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
High Pressure (10.0MPa≤p<100.0MPa)
Condition
New
Diameter
219-232-267 mm
Model No.
40L-50L
Un Code
1001
Purity
98%
Certificate
Certificate of Conformity
Cylinder Type
Welded
Transport Package
Plastic Net
Specification
219/232 diameter, 10-60L capacity
Trademark
RM
Origin
Qingdao, China
HS Code
7311009000
Production Capacity
60000 PCS Per Month

Product Description

Product Description
C2H2-Acetylene gas
Proper Shipping Name: Acetylene,dissolved
UN NO.: UN 1001
Hazard labels: 2.1-Flammable gas
We offer acetylene gas (C2H2) in a variety of purities and packages. Acetylene is used as a key component in low pressure carburizing. It provides the precise carbon source automotive manufacturers need to create a strong, wear-resistance surface layer on steel parts.
Gas Product Purity
Acetylene Gas ≥98%
Chemical Acetylene Gas ≥99%
AA grade Acetylene Gas ≥ 99.6%

Product Parameters
We offer acetylene gas (C2H2) in cylinders that range from 2L to 60L.
Nominal water capacity 40 L
Nominal diameter 250 mm
Limited filling pressure(15°C) 1.52 Mpa
Hydraulic test pressure 5.2 Mpa
Sealing test pressure 3 Mpa
Porous mass propery Compressive strength ≥1.8 N/nm2
Porosity 90-92%
The axial space ≤2.5mm
Solvant Acetone
Acetylene weight Max Filling 6.5KG
Maximum working temperature 40 °C

Typical application

USES & APPLICATIONS OF ACETYLENE GAS BY INDUSTRY Automotive & Transportation Equipment Acetylene is used as a key component in low pressure carburizing. It provides the precise carbon source automotive manufacturers need to create a strong, wear-resistance surface layer on steel parts.
Welding & Metal Fabrication Acetylene offers the hottest flame temperature of all commercially available fuel gases, making it an ideal atmosphere for oxy-fuel welding and cutting, as well as brazing applications.
Explore other industries that use acetylene.
Aerospace & Aircraft Glass Pharmaceutical & Biotechnology Packaging & Shipping
