High Accuracy Mini Split Core Current Transformer for Energy Electricity Smart Meter

Product Description

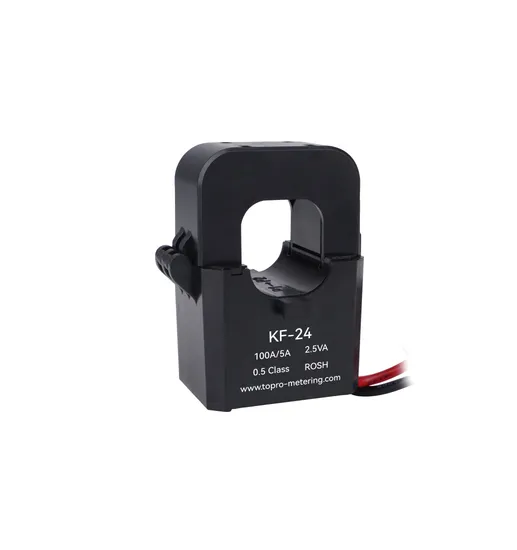

TOPRO hinged split-core current transformers KF series offer an excellent balance between function and accuracy. The quick release button makes the CT to fit with conductors(Cable/Wire)for precision current measurement easily, without cutting off the circuit. KF current transformer has advantages of bigger capacity and bigger mounting hole size, so they could be used in many power applications. The installer-friendly design ensures rapid installation in any environment.

Product Characteristics
1.High accuracy: 0.5% from 10%-120% of rated current
2.Input current range: 5A-1000A AC (depending on the Models)
3.Safe,333mV output
4.Hinged split core design for quick installation without disconnecting the measured primary conductor.
5.Engineered for superior utility in crowded electrical panels

Applications:
1.Measurement, monitoring and protection for electrical circuit and instrument.
2.Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system,
air-condition equipment and automation-control system.
3.Relay protection device.
4.Charging pile
5. Data center

Product datasheet

Rated input current	0-1000A
Customized design turns	Available
Accuracy class	0.5, 1.0 class;
Frequency	50-400 Hz
Power factor	Cosφ=1.0;
Dielectric strength	3.0KV/1mA ,No breakdown for 60 seconds
Insulation	DC 500V/1000MΩ Min
CT core	Silicon steel
1m Length PVC wires	18-24AWG black/white
House	UL 94 V0
Operating temperature	-45-+50 ºC
Air humidity	≤ 85%( at 20ºC);

KF-24 Specs and parameters

Model	Split core current transformer KF-24
Current ratio	100A/40mA	200A/40mA		200A/66.7mA	400A/80mA	100~400A/0.333V
primary current	100A	200A		200A	400A	100~400A
Max Current	150A		240A	240A	480A	4800A
Output	40mA		40mA	66.7mA	80mA	333mV
Load resistance	50Ω					\
Accuracy Class	0.5,1.0
Ratio	2500:1		5000:1	3000:1	5000:1	\
Operating temp.	-25° C - 50° C
Storage Temp	-40° C -50° C
ROSH compliance	Yes

Product Dimensions

Models	Outlie dimensions (mm)
	Inner hole Φ (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
KF-10	Φ10	29	41	/	14	26
KF-16	Φ16	39	46	38	20	31
KF-24	Φ24	54	66	43	23	35
KF-36	Φ36	68	85	50	25	43
KF-50	Φ50	93	120	70	28	60

---
