Full Automatic Disposable Baby Diaper Making Machine Elastic Waistband Nappy Production Line

Product Description

Full Automatic New Baby Diaper Machine Elastic Waistband Nappy Production Line
Full servo elastic waistband baby diaper machine produces the following diapers:


Elastic wasitband baby diaper provides the comfortable waering experience to the baby. The waistband is full with elastic which will not give more pressure to the baby's waistband and give more adjustable space for the side tape
Elastic waistband nonwoven is soft and highly in elastic, the elastic wasitband nonwoven can be formed on line and also can use the ready elastis waistband nonwoven for the production.
Machine Parameter:

1.Product Structure	Anti leakage N.W.(inside/outside folding),cuff elastic(3+3),top sheet,side tape N.W(inside/outside sperated position) Magic tape (available in winding)ADL,top sheet,regular core+SAP, lower tissue paper, elastic waist,leg elastic(3+3),PE sheet,back sheet,front tape.
2.Product specification	S,M,L,XL
	S length:390mm width :320mm
	Core length:310mm core width:110mm
	M length:450mm width:320mm
	Core length :360mm core width :110mm
	L length:490mm width:320mm
	Core length :400mm core width:110mm
	XL length :540mm width :320mm
	Core length:450mm core width:110mm
	Will based on last real product
3.Design speed	600pcs/min (M)
4.Stable production speed	500pcs/min
5.Center distance of production line	Referring to distance between the center line of product material and main frame plate,300mm
6.Distribution of raw materials	The surface layer of the compound surface of non-woven fabric is the core body.
7.Product weight tolerance	±5%
8. Rate of finished product	≥98%(not including the defective products caused by glue applicators, feeding of raw materials and joints of raw materials
9. Efficiency range	≥85%
10. Power	300KW
11. Weight	72T
12. Electric supply	380V±5%,50HZ
13. Dimension	22.3m ×2.3m×3.5m (L×W×M,Include crusher)
14. Air pressure	0.6-0.8Mpa(Buyer need to prepare for air source)
15.Working direction of machine	to be decided by buyer
16. Color	It depends on customer's requirement

Main Parts Brands:

Name of parts	Brand
PLC	Mitsubishi
Touch Screen	Mitsubishi
Servo control drive	Mitsubishi
Auto web controller	BST
Bearing use imported bearing	NSK/NTN/
Timing belt	Gates/Tiger
Flat belt	Nitta/Tiger
Cylinder/magnetic valve	Airtac

Other Model Equipment Machinery :

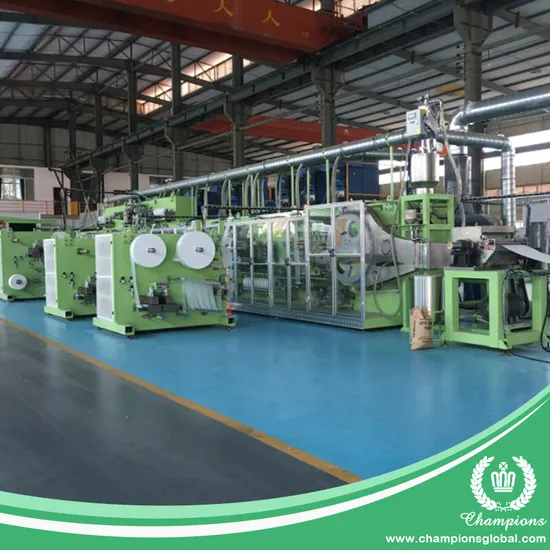

Machine runs stably in customer's workshop:
Quality Machine produces quality baby diaper, here following is our customer's baby diaper show room:
Full servo baby diaper
FAQ:
Q1. Are you factory or trading company?
A: We're professionally machinery manufacture over the past decade.
Q2: When can i get the quotation?
A: After we confirm the products structure and configurations with you side,can offer you price within 24hours.
Q3: What is the payment terms?
A: We accept T/T, L/C, Western Union ect. 30% as deposit and 70% before shipment.
Q4. Can we come to your factory inspect the baby diaper machine?
A: After 120 days after deposit,your machine will be installed well and we will test it by ourselves,then inform and welcome you to visit.
Q5. What is the shipping time and shipping Way?
A: After receiving balance of order,we will inform and help you arrange shipment within 10days.
Q6. If you will dispatch technicians to help us install machines in our workshops?
A: Yes,After machines arrive to your plant,we will dispatch 2-3technicians to your side and teach your technicians to running the machine!
