Cheap Price New Product Line Carpet Nonwoven Machine

Product Description

Cheap Price New product line carpet Nonwoven Machine Product Description

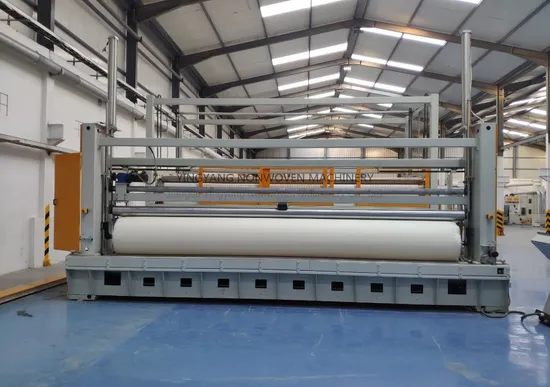

YYXT-WINDER & CUTTER
Function
To vertical, cross cut and neatly roll finished punching fabrics to specified roll length.
For soft nonwovens, automatic winding, doffing, roll changing is available as an option if customer choose such design.
Structure
This machine is comprised of coiling wallboard, counter press roller, edge-trimming cutter shaft, lengthways cutters, transverse cutters and coiling roller.
This machine has accurate counting controlled by mechanic counter or digital counter input from photoelectric converter. Different ways of lengthways cutting according to different products: slab cutter or electric fly-cutter. Transverse cutting also has two ways: electric fly-cutter and manual cutting.
Product Parameters
Main Specification

Working width:	≤10m
Installed power:	3.75-6.75 kw
Winding diameter:	≤1200mm

Characteristics Linear guide is an option for vertical cutting; the vertical cutting frame is installed on the linear guide, which is very convenient for movement and adjustment. Normal design is without linear guide. Linear guide along with synchronous belt is an option for cross-cutting, with smooth running, low noise and no oil dirty. Normal design is combination of the chain and wheel. For geotextile and asphalt felt substrate, which have particular requirement for the roll diameter, an added pressure roller is an option to make the winding more compact. Company Profile
