Automatic Rubber Sheet Cutting Machine EVA PVC Film Cloth Silica Gel CNC Cutting Machine Steel Plate and Aluminum Foil

Product Description

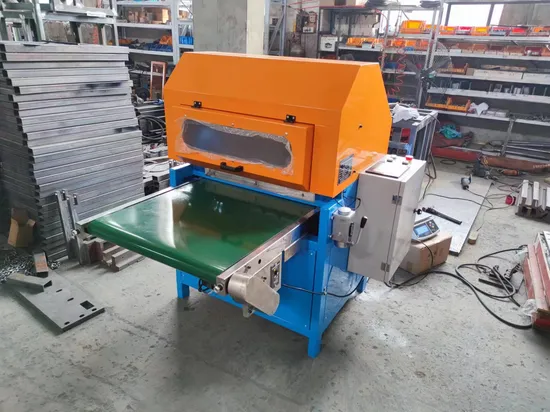

Rubber Strip Cutting Machine with PLC control and HMI operation.
Description:
1.Our Rubber Strip Cutting Machine (Rubber Strip Cutter )is optimized in structure and easy to operate.With glass plates positioning in front make the operation more secure. Feeding platform is made of pure mirror stainless steel, truly beautiful appearance and guarantees safe production, high automation, easy operation and low noise and has a good safety device, automatic lift feed roller device is also a friendly design.
2.The blade of the machine is alloy inlaid high speed wear-resistant material, sharp and long life service.

3. Rubber Strip Cutting Machine is controlled by PLC and stepper motor,with mechanical-spring material press roller to make the rubber sheet feeding more accurate and smooth,improving the cut precision for the rubber strip.Easy operation, operator just input the desired width in the computer,the right width strip will be cut continuously.During cutting process, you can freely adjust the width of cut material as per your actual need.This CNC type Rubber Strip Cutting Machine,combining advanced CNC automatic mechanical and electric integration system,it overcome the problem for the normal strip cutting machine whose transmission parts could be wearing after long time use.
4.Automatic Rubber Strip/Blank Cutting Machine with electronic scale for cutting weight control is available for option.
Technical Specification:

Model	XQ-450	XQ-600	XQ-800	XQ-1000	XQ-1220
Max. feeding rubber width(mm)	450	600	800	1000	1220
Max. cutting thickness (mm)	20	20	20	20	20
Max.Cutting efficiency (times/min)	86	86	80	80	65
Cutting precision	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Motor power(KW)	1.5	1.5	2.5/3	2.5/3	4/5.5
Dimension (LxWxH:cm)	105x70x110	115x85x110	140x96x120	165x100x123	180x100x142
Weight(Kg)	500	750	840	1050	1200

Notes: the form only list out the normal standard model, more special models can be customized to order.
Service: 1. Professional and quick response to your questions within 24 hours. 2. We will communicate with our production dept. and keep you updated about production progress in time. 3. Customized manufacture available for you. 4. Fast delievery to save your time. 5. Good after sale service will eliminate your worry. 6. Long guarantee period of the quality will reduce your cost and trouble. 7. Professional wooden case packing and ocean shipping control to make your order safe and sound.
8. Full sets of technical documents, instruction manual can be provided.

---
