Product Details
Product Description
Product Description

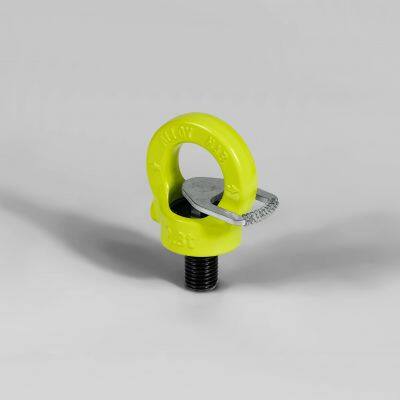

360° Rotated, Built-in ball structure, uniform force, smooth rotation. When the force direction changes, the swivel hoist ring rotates with the direction of the force, and the hanging ring does not distort.
4:1 Safety Factor, The linking can automatically adjust the force angle with the stretching direction. Working tensile is the same in any direction, and the safety factor is 4:1.
Scientifically proportioning alloy elements, Lifting points are made of alloy steel precision forging, with a tensile strength greater than 1080Mpa.
Non-standard customization, Different kinds of thread are available, wide range of VILL load (M8-M150, 0.4T-50T); Thread size can be customized according to customer requirements (Long or short bolt, Metric thread, Metric fine thread, UNC thread, UNF thread, BSW thread and so on).
Easy Installation, The outer hexagonal+inner hexagonal design is convenient and fast for installation.
Surface anti-corrosion design, in addition to conventional working conditions, can also be applied to corrosive environments such as oceans and high chloride ions.
1. Q: How can I trust your products?
A: Our products have been sold to 60+ countries and used by 5,000+ customers so far. It has not caused any personal safety accidents. We have established strict standardized production processes, continuously optimized process flows, and various inspection methods, such as breaking test, static load test, fatigue test, etc. We strive to control and inspect product quality from all aspects.
2. Q: Why is your price low?
A: First of all, as a source manufacturer, we have a great advantage in cost control. Our factory is self-built and has invested in multiple production lines. Besides, we specialize in the production of lifting points, so we can adjust the production process more efficiently while controlling costs. Overall, we can spend more cost on R&D, high-quality raw materials and improving production process.
3. Q: Can I request samples before placing an order?
A:Sample fees can be discounted by 0-100% depending on product size and quantity (excluding shipping fees).
4. Q: What qualifications does your factory have? What certifications have your products passed?
A: Our factory has fully passed the GB/T19001-2016 quality management system, GB/T45001-2020 occupational health and safety management system, GB/4001-2016 environmental management system, and SY/T6276-2014 HSE management system. All our products have passed CE certification and China Classification Society product certification.
5. Q:Can you provide plastic-free packaging?
A:Product packaging usually uses PP bag or Bubble bag with soft material. If you have special requirements, we can change the packaging form according to your needs.
6. Q: What is the difference between G80 and G100?
A: G80 and G100 represent the strength level. G100's tensile strength is 25 % higher than G80's . In strict sense, these two levels are only aimed at the ring part. For our hoist rings, the weak link of the force point is the bolt. The break-up value of the bolt 90 ° is less than G80. Therefore, the G80 is enough to ensure the performance of the current products. If the ring is used in G100, the material and process need to be changed. As a result, cost and price increase but the WLL of the lifting point will not be improved.
>>
