Blow Molding Machine for 5L 2cavity

Product Description

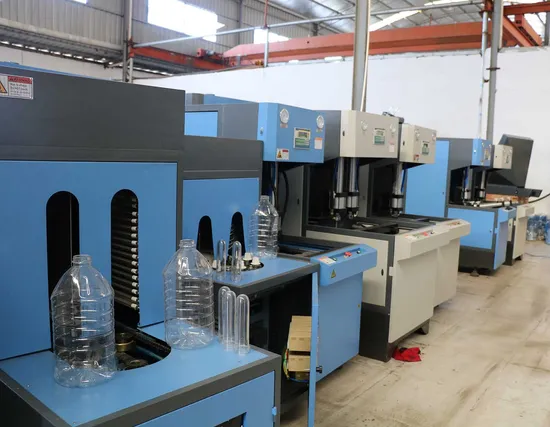

semiautomatic Blow Molding Machine
. Engineering item:
1.Capacity: 200-300pcs/hr (based on 10L)
2.Capacity: 400-600pcs/hr (based on 5L)
2. Max volume of product: 10 liter
. Description:
Technique Parameter of blowmolding machine:
Trait:
semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 5000-10000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi- auto mode.
The machine is small with low investment, easy and safe to operate by one person.

Model NO.	GMS-5L-2C
Theoretical Output	800pcs/hr
Max.Container Volume	6L
Max. Neck Diameter	55mm
Max. Container Diameter	260mm
Max. Container Height	430mm
Mold Thickness	260-430mm
Number Of Cavity	2 cavity
Use Power	10kw
Working Pressure	1.0mpa
Blow Pressure	<3.0mpa
Machine Size	2x0.77x1.77m
Machine Weight	0.65T
Heater Size	1.7x0.6x1.34m
Heater Weight	0.2T

GM-0034

---
