High Performance Rubber Turning Device Rubber Machinery

Product Description

Product Description
Characteristic:
1. The machine,matched with folding back device,takes place of man power to fold back and pack to reduce labor intensity.
2. Adopting hydraulic-controlling roll guide,it can freely adjust the axial separation of roll guide.
3. With chain drive,the main engine owns the characteristics of compact structure,high intensity,low noise and so on.Product features:
1. The roller is made of alloy chilled cast iron and has two structures: hollow and peripheral drilling.
2. There are three types of distance adjustment: manual distance adjustment, electric distance adjustment and hydraulic distance adjustment.
3. Driven by DC or AC motor, single motor or double motor can be used.
4. Equipped with emergency stop button, chest touch switch, rope switch and other safety devices to ensure the safe use of equipment.

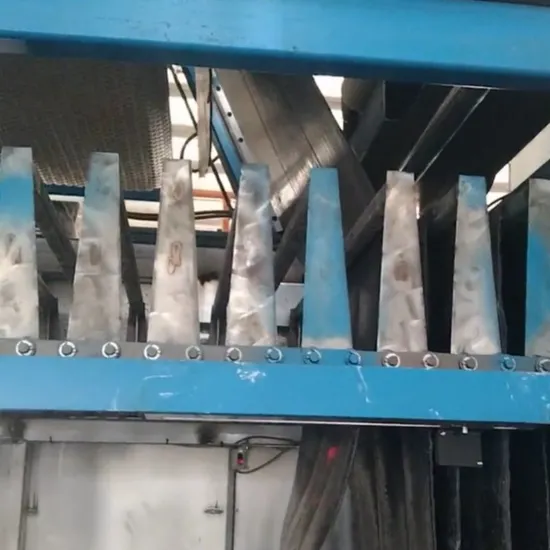

5. The turning device can be selected according to the process flow.Detailed Photos
The device is mainly used for rubber mixing, hot refining, sheet pressing and plasticizing. The gluing device replaces the manual operation of cutting and punching triangle bags and gluing with mechanical gluing device, which makes it more mechanized, reduces labor intensity, and improves production efficiency.
Turning device is a kind of equipment used for turning or adjusting the position of the rubber material, which is widely used in the production process of rubber, plastic, chemical industry. It is usually used to turn the compound from one side to the other for the next step of processing or treatment. The glue turning device can improve production efficiency, reduce manual operation, and ensure that the rubber material maintains uniformity and consistency during processing.Product Parameters

	FG-400	FG-450	FG-560	FG-660
Pulling roll diameter(mm)	φ160	φ240	φ240	φ240
Pulling roll linear speed(m/min)	2.0-21.65	2.7-27.67	3-33.72	30/27
Rubber swing the number of round trips(time/min)	2.5	2.5	2.65	1.93
Rubber swing amplitude(mm)	684	900	1188	1680
Pressing roll moving distance(mm)	72	72	72	72
Pulling roll motor power(kw)	2.2	2.2	3	3
Rubber swing moving mode	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Weight(kg)	900	1000	1200	1300

Certifications
Company Profile
Qingdao Junlin Machinery Co., Ltd. is a company engaged in rubber machinery, shoe machinery research and development and manufacturing enterprises, located in the west coast of Qingdao, Shandong, China, the geographical environment is superior.
The company gathers a large number of outstanding technical and management talents in the industry, with advanced machining equipment and precision testing instruments. Relying on high-quality service, advanced equipment and excellent technical strength, through continuous innovation and development, Junlin Machinery has established a stable business relationship with many customers at home and abroad, and gradually established a brand position in similar enterprises.
The main products of the company are: open rubber mixing machine series, waste tire rubber recycling production line series, calender, extruder, filter rubber machine series, film cooling line series, plate vulcanization machine series and so on.
Our Advantages
The company has T150 large floor boring machine, 2m×6m large planer milling machine, MQ1350A×3000 cylindrical grinding machine, M7150×2000 surface grinding machine, C62100B×5000 large lathe, C61110×3000 large lathe, C6180×3000 large lathe, C6125×3000 large car Bed, T611B horizontal boring machine, CNC lathe and a series of advanced processing equipment, according to customer requirements to produce a variety of special rubber machinery equipment.

---
