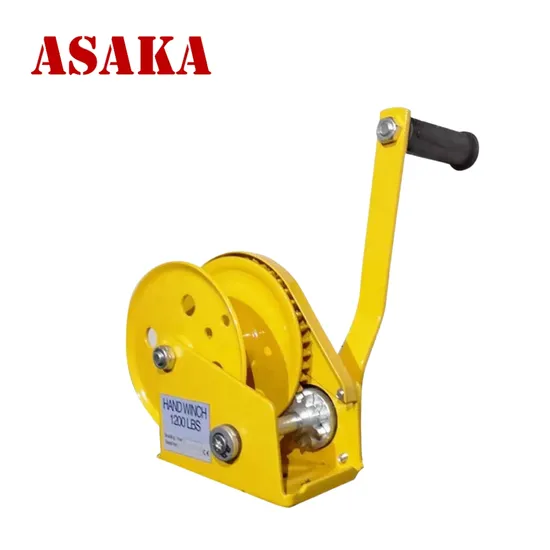

Best Price 1200lbs Manual High Quality Lifting Hand Winch with CE Certificate

Product Description

Product Description
A simple winch consists of a spool and a lever. Winches are the basis for equipment such as trailers, steam shovels, and elevators. Complex winches have gear assemblies and can be driven by electric, hydraulic, pneumatic or internal combustion engines. It may include an electromagnetic brake and/or a mechanical brake or a ratchet and pawl that prevents the pawl from releasing unless it is retracted. The rope can be wrapped around the winch. When trimming a rope on a sailboat, the crew turns the winch handle with one hand while pulling on the tail end with the other hand to maintain tension during the turn. Some winches have locks to maintain tension

Model		1200LBS	1800LBS	2600LBS
Rated capacity (t)		1200	1800	2600
Test load(kn)		8	12	17.5
Transmission ratio		4.2:1	5:1	10:1
Hand operated strength(N)		180	190	190
Dimensions (mm)	A	φ48	φ60	φ75
	B	φ134	φ180	φ180
	C	51	60	63
	D	157	190	209
	E	φ27	φ27	φ27
	F	273	288	307
	G	110	110	110
	H	156	203	216
	J	184	246	294
	R	208	319	319
Net weight(no wire rope) kg		3.7	8.1	10.3

Can I get a sample before order? sure, we provide you Free sample within 3-5 working days.
can you accept small order? for some normal items, we can do small quantity according your details requirement.
How about your delivery time? 25-30days

---
