5 Axis Stone Cutting Machine for Marble/ Granite/ Brick

Product Description

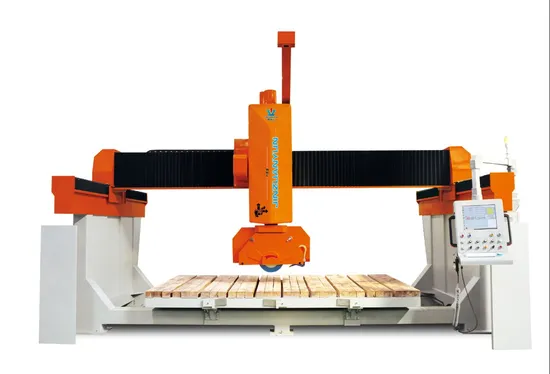

New Arrival 5 Axis Stone CNC Router Bridge Integrated Cutting Machine
Are you troubled by frequent precision errors, high maintenance costs and complex operation procedures in the stone processing?
JZYTJ-600 5 axis CNC cutting machine is specially designed to address the industry pain points!!!
With a high-strength cast iron bridge body design, it can maintain stable operation even when dealing with hard materials such as marble and granite, completely getting rid of the trouble of vibration and deformation. Equipped with an intelligent CNC system, it enables full automation cutting without the need for professional technicians, allowing your factory to operate efficiently 24 hours a day and easily handle high-precision orders such as tombstone engraving and quartz stone countertop processing.
Click to inquire, get the industry-leading stone processing solution, and make every piece of stone a profit growth point for you.

Project		Parameter
The machine stroke	X axis stroke (mm)	3400
	Y axis stroke (mm)	2000
	Z axis stroke (mm)	500
	A axis stroke (°)	0-90
	C axis stroke (°)	±365
	Cutting thickness (mm)	0-210
General configuration	Fast running speed (m/min)	25
	Spindle power (kw)	18.5-22
	Spindle speed (rpm)	0-3500
	Saw blade diameter (mm)	300-700
	Platform size (mm)	3400*2000
	Flip angles (°)	0*85
	The total power (kw)	≈33
	The total weight (kg)	≈7500
	Equipment dimensions (mm)	6000*3300*3850
Functional Configuration	Camera function	Yes
	Knife function	Optional
	Thickness function	Optional
	Chuck function	Optional
	Cutter function	Optional

The bridge body is made of one-piece cast iron, which enhances the rigidity by 40% compared with traditional steel structures. It can withstand a single-point load of over 4 tons and significantly improves the absorption capacity of cutting vibration. The internal stress is eliminated through a special tempering process, and it shows no deformation after 100,000 cycles of testing. This ensures that the processing accuracy error of marble / granite is less than 0.1mm, and the service life is extended by more than three times.
Equipped with an intelligent control system and integrating AI path optimization algorithm, it can automatically identify the stone texture and generate the optimal cutting plan. It supports graphical programming, enabling workers to complete complex pattern designs through industrial touch screens without needing to master G codes. The system has 300 + industry templates, and it can start various processes such as tombstone relief and irregular cutting of countertop panels with just one click.
Equipped with imported servo motors, the power density is increased by 25%, the cutting speed reaches 15m/min, and the energy consumption is reduced by 30% simultaneously. The core components adopt high-precision guide rails and renowned brand electrical components, and are certified with IP67 waterproof standard. Even in complex working conditions, they still maintain 99.8% operational stability. The modular design enhances the maintenance efficiency by 50%, and the routine maintenance only takes 30 minutes per month. The core components are provided with a 5-year warranty, and the comprehensive usage cost is reduced by 45%.
Focusing on R&D, manufactureing, sales and technical services for 10 years. Pre-sales: * Consulting support
*Ccording to customer requirements to install the machine
*Visit the factory
After sale: * Machine installation and use instructions service
Our company has become a domestic CNC engraving machine production and export volume of enterprises. Strong engraving machine in China has been in a leading position,and one time through IS09001,CE certification, ROHS certification an bv certification.
Packaging technology requirements are mainly rust, moisture, pressure, impact resistance, suitable for storage, transportation and sales. Equipment is fully protected and boxed before shipment from the factory to ensure that it is in a non-damaged condition upon arrival at the site.
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time.
Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat,
facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.

---
