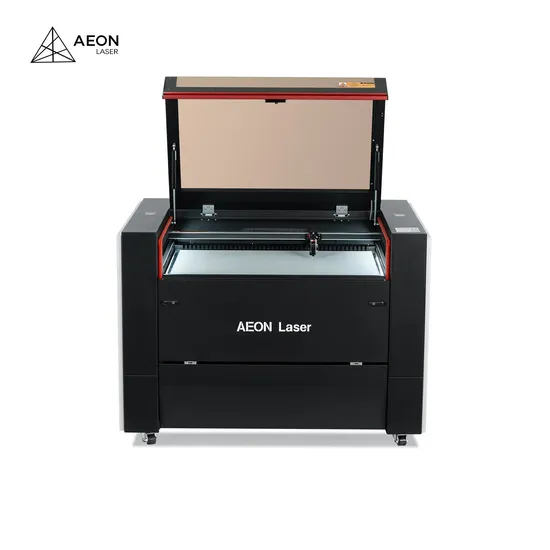

Aeon 1490 Semi-Automatic 80W 100W 130W 150W CO2 Laser Cutter Engraver

Product Description

Our Advantages
Product Parameters

Parameters	Model	Nova10 Super/Elite	Nova14 Super/Elite	Nova16 Super/Elite
Working Scope	Working Area (mm)	1000*700mm	1400*900mm	1600*1000mm
	Z Axis Lifting Space	200mm	200mm	200mm
	Max Lifting Capacity	120KG	120KG	120KG
Laser Tube	Laser Tube Power	Glass: 90W/100W RF: 30W/60W	Glass: 90W/100W/130W RF: 30W/60W	Glass: 90W/100W/130W/150W RF: 30W/60W
Motion system	Max Engraving Speed	4000mm/s (Super) 1200mm/s (Elite)	4200mm/s (Super) 1200mm/s (Elite)	4200mm/s (Super) 1200mm/s (Elite)
	Acceleration	8G (Super) 5G (Elite)	8G (Super) 5G (Elite)	8G (Super) 5G (Elite)
	Motor	AC Servos (Super) DC Steepers (Elite)	AC Servos (Super) DC Steepers (Elite)	AC Servos (Super) DC Steepers (Elite)
Accuracy	Minimum Font Size(RF Tube)	1.0x1.0mm	1.0x1.0mm	1.0x1.0mm
	Positioning Accuracy	<=0.1mm	<=0.1mm	<=0.1mm
Configuration	Working Table	Honeycomb + Blade table	Honeycomb + Blade table	Honeycomb + Blade table
	Cooling system	Glass: Built-in 5000 chiller RF: Air-cooled	Glass: Built-in 5000 chiller RF: Air-cooled	Glass: Built-in 5000 chiller RF: Air-cooled
	Fume Exhaust Fan	Built-in 500W (Auto Start-stop)	Built-in 500W (Auto Start-stop)	Built-in 500W (Auto Start-stop)
	Air Assist	Built-in compressor 750W with 24L air tank (Auto Start-stop)	Built-in compressor 750W with 40L air tank (Auto Start-stop)	Built-in compressor 750W with 40L air tank (Auto Start-stop)
	XY axis fully dust-proof	√	√	√
	Auto Focus	√	√	√
	Wireless Connectivity	√	√	√
	Red Dot Positioning	√	√	√
	Material Pass Through Door	√	√	√
	Camera	100° 8 megapixel (3840x2160)	100° 8 megapixel (3840x2160)	100° 8 megapixel (3840x2160)
	Tooless optical system	√	√	√
	Internal Memory	1G	1G	1G
System	Smart Panel (monitoring function)	√	√	√
	Fault alarm and diagnosis	√	√	√
	Operation status light	√	√	√
	Water Flow Protection	√	√	√
	Water Temperature Alarm	√	√	√
	Operating Software	Rdworks/Lighburn(Optional)	Rdworks/Lighburn(Optional)	Rdworks/Lighburn(Optional)
	Compatible Design Software	CorelDraw/Illustrator/AutoCAD	CorelDraw/Illustrator/AutoCAD	CorelDraw/Illustrator/AutoCAD
Safety	Laser Class	Class 1 laser product	Class 1 laser product	Class 1 laser product
	Cover lid interlock	√	√	√
	Side panel lid interlock	√	√	√
	Key lock	√	√	√
Package	Machine Dimension(mm)	1500*1210*1125	1900*1410*1125	2100*1510*1125
	Net Weight (KG)	415KG	560KG	566KG
	Gross Weight(KG)	532KG	683KG	730KG
Optionals	Rotary Clamp/Lightburn Software /Air Purifier

Application:
Company Profile
Certifications
Exhibitions
FAQ
1. I know nothing about this machine, what kind of machine should I choose?
Just tell us what you want to do by using a laser machine, and then let us give you professional solutions and suggestions.Please tell us this information, we will recommend the best solution.1)Your materials2) Max size of your material3)Max cut thickness4)Common cut thickness2.When I got this machine, but I don't know how to use it. What should I do?We will send videos and English manual with the machine. If you still have some doubts, we can talk by telephone or Whatsapp ande-mail.3.What about the warranty period?Our machine comes with a one-year warranty. Additionally, laser tubes, mirrors, and focus lenses are covered for six months,except for RECI laser tubes, which have a 12-month warranty. Guide rails are under warranty for two years. If any issues ariseduring the warranty period, we will provide free replacement parts.

---
