UC3 Compliant 120A Three Phase Latching Relay for Smart Meters

Product Description

Product Description

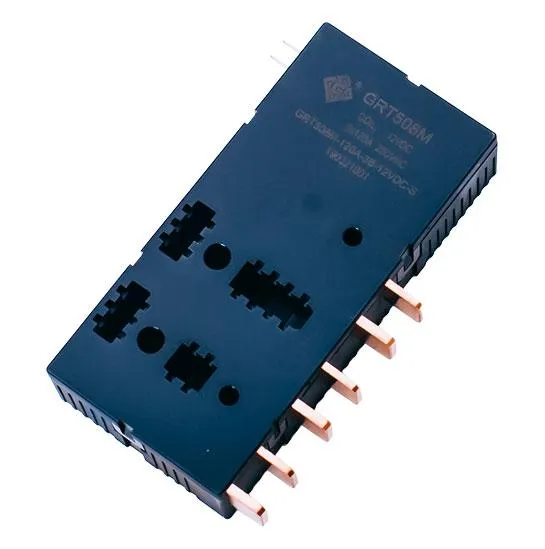

3-pole Latching Relay
120A three sets of contacts switching simultaneously, auxiliary contact can be added.
Only impulse excitation needed, both for single and double coil.
Low power consumption.
Custom assemblies available with flexible wire and/or copper straps, and/or with integrated shunt
4KV dielectric strength between coil and contacts
RoHS compliant
IEC62055-31 UC3 compliant
Outline dimensions:(110x 52 x24) mm
Product Parameters
Contact Data

Contact Form	3B/3H ( double contacts)
Contact Material	AgSnO2
Contact Resistance	Max. 1.0MΩ (1A 6VDC)
Rated Load ( Resistive)	100A 250VAC
Max. Switching Voltage	380VAC
Max. Switching Current	120A
Max. Switching Power	25000VA
Mechanical Service Life	1x105 OPS
Electrical Service Life	6X103 OPS (120A, 250VAC)
	1x104 OPS (100A, 250VAC)
Max. Short-circuit Current	3000A/10ms
	6000A/10ms (no explosion)

Characteristics

Operate Time	Max. 60ms
Release Time	Max. 60ms
Insulation Resistance (500VDC)	Min. 1000MΩ
Dielectric Strength between Contact & Coil	4000VAC
Dielectric Strength of Contact Opening	2000VAC
Dielectric Strength between Contacts	4000VAC
Surge Voltage from Contact to Coil	4KVAC
Creepage Distance	8mm
Unit Weight	about 300g

Environment Data

Ambient Temperature	-40ºC~ 85ºC
Relative Humidity	5%~85%RH
Vibration	10~55Hz 1.5mm
Shock	98M/S2 (functional)
	980M/S2 (survival)

Coil Data

voltage	resistance(Ω)±10%		power(W)		operating	releasing	allowing	pulse duration
	single	double	single	double	VDC	VDC	VDC	ms
6	7.2	3.6/3.6	5.0	10.0	≤4.2	≤4.2	9	≥120
9	16.2	8.1/8.1			≤6.3	≤6.3	13.5
12	28.8	14.4/14.4			≤8.4	≤8.4	18
24	115.2	57.6/57.6			≤16.8	≤16.8	36

Drawing
Typical Terminal Type
