Standard Color Safety Rubber Angel Square Corner Guard

Product Description

Standard color safety Rubber Angel square Corner Guard
Corner guards are constructed from high impact resistance natural rubber. They are designed to protect the edges of columns in structures. Corner guards relieves the tension of chipped & broken corners of pillars. They are mounted onto the edges of, preferably all the 4 edges of square columns of basement parking as well as the edges of the walls in industrial premises. They are suitable for medium & heavy traffic areas & also moving trolleys. They are a perfect solution for chipped edges in car parks, hospitals, nursing homes, laboratories, hotel, schools, sports areas and multitude of other commercial properties.
Features:
(1)Rubber Corner guards come in standard length of 600mm and 800mm, others size available on request.
(2)Application include car-parks, basement parks, industrial and commercial premises.
(3)In-plant corners protection from moving objects.
(4)Standard color of corner guard is black, yellow cover strip are available on request.
(5)Installs easily with the help of anchor fasteners and epoxy.
(6)One piece Construction.

Production Specification: Model No Item Name Length Width Thickness Weight

DH-129	Square Corner Guard	800MM	100MM	12MM	2.2KG
DH-131	Square Corner Guard	800MM	100MM	8MM	1.8KG
DH-132	Square Corner Guard	800MM	80MM	20MM	3.0KG
DH-133	Square Corner Guard	600MM	80MM	20MM	2.0KG

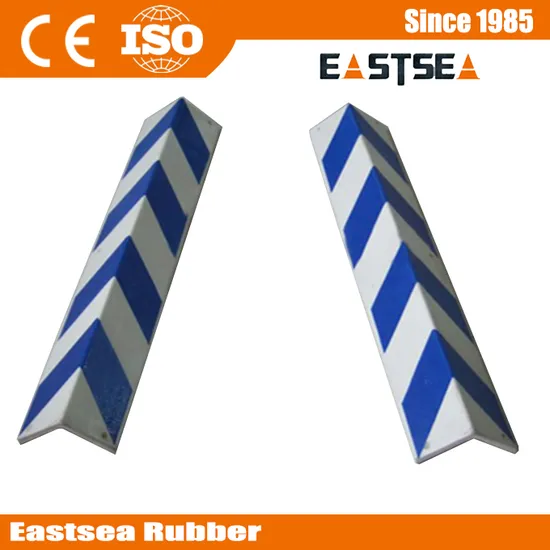

Detailed Images:
Related Products:
Related Products Size:

Model no	Item Name	Length	Width	Thickness	Weight
DH-128	Round Corner Guard[Heavy Duty]	800mm	120mm	20mm	2.6kg
DH-128L	Round Corner Guard[High Type]	900MM	100MM	20MM	2.5KG
DH-129	Square Corner Guard	800MM	100MM	12MM	2.2KG
DH-131	Square Corner Guard	800MM	100MM	8MM	1.8KG
Model No	Wing Width	Thickness	Standard Height	Yellow Stripes Width	Weight
DH-ECG-1	100MM	20MM	1000MM	20MM X 3 Stripes	2.5KG
DH-ECG-2	100MM	20MM	1200MM	20MM X 3 Stripes	3.0Kg

---
