IEEE802.3at Poe Splitter Compatible Gigabit Converter Poe to 24V Passive WiFi Ap

Product Description

Product Description IEEE802.3at Compatible Gigabit Converter POE to 24V Passive Product Description This device works with any 802.3at switch, it takes the 44 to 56 volts from the PoE switch, and converts that voltage to 24 volts and injects that onto mode B passive with gigabit data speeds. Many Mikrotik devices need this function. Can also work with an 802.3af switch if the ouput is used below 13 watts.
Intended for use with PoE switches - this PoE solution appears like a standard Class 4, 25 watt device.
The PoE switch can send either polarity, and only 2 pairs are required for power, 4 pairs for gigabit data, 2 pairs for 10/100.
The ouput is fully isolated from the input voltage. Grounding is of no concern.
In addition to Passive PoE output, a DC connector also supplies the 24 v DC. Specifications Data speed 10/100/1000 mb/s
Input Voltage 802.3af / 802.3at / passive 44 to 57 volts at 570 mA max
Output Voltage 24 volts passive PoE 1% at 1.04 amps, 25 watts
Internal power use 900 mw
Operating Temperature 0°C - 50°C
Data Transparent
Isolation 1500 Volts
Size 107 x 50 x 25 mm
PoE Power input Pins 1&2 and 3&6 - either polarity - mode A
4&5 + and 7&8 minus - mode B
Shielded Rj45
PoE Power output pins 4&5 plus and 7&8 minus - mode B
Shielded Rj45
DC power output 2.1mm x 5.5mm female connector
802.3at Class 4
LED status on Female RJ45 Right - Power In active = Green
Left - Power out active = Amber

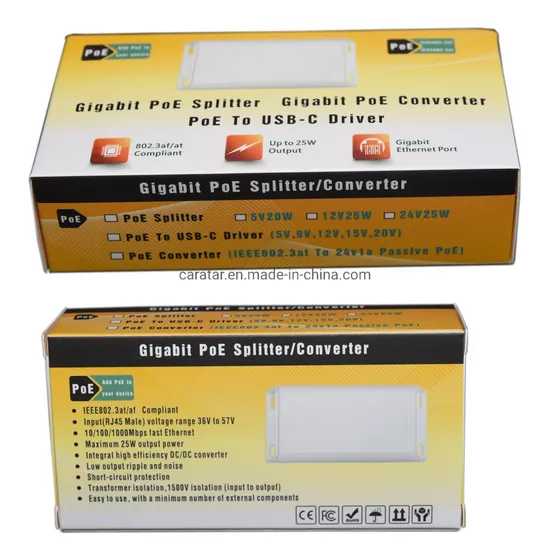

Detailed Images

---
