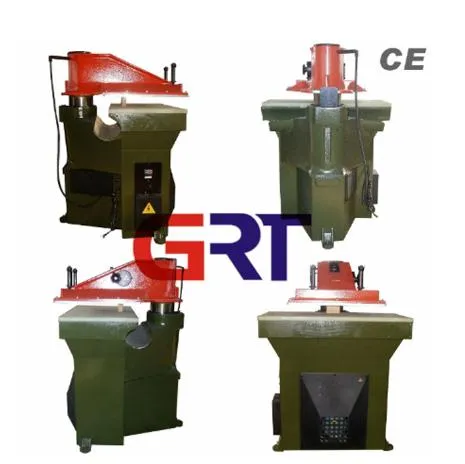

Hydraulic Swing Cutting Press Swing Arm Cutting Press Beam

Product Description

THE MACHINE INCLUDE PALLET,HYDRULIC OIL,CUTTING BOARD,TOOLS AND SPARE PARTS.

Model	GRT-S22	GRT-S27	GRT-S27K	GRT-S27L
Maximum cutting force	22T	27T	27T	27T
Table area	900×430mm	1000×500mm	1000×500mm	1000×500mm
Swing arm width	370mm	370mm	500mm	610mm
Cutting stroke	90mm	90mm	90mm	90mm
Motor power	1.1KW	1.5KW	1.5KW	1.5KW
Packing size	1050×1000×1500mm	1100×1100×1600mm	1100×1100×1600mm	1100×1100×1600mm
N.W(with oil)	650kg	930kg	990kg	1040kg
G.W	740kg	940kg	1000kg	1050kg

1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with
machine. If there is still have any question, we will provide free professinal guide for you until you
could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales
service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your
port name. There will be best shipping freight and machine price send to you.

---
