Product Details
Product Description
Product Description
【Applications】

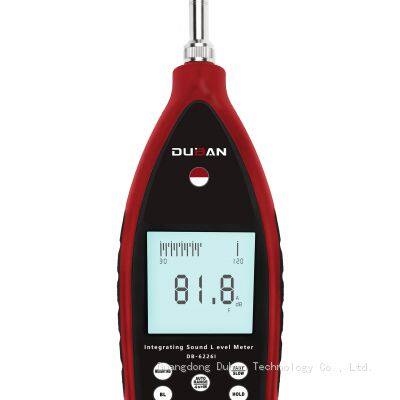

The Impulse Sound Level Meter is a universal sound level meter that measures the exponential time
weighted sound level, and an impulse sound level meter. Its performance is in accordance with
GB/T 3785-2010 standard level 2 And IEC 61672:2013 Class 2 sound level meter requirements. It also
meets the JJG 188-2017 standard.
【Features】
* The three time weighting F, S, and I can be selected.
* The digital detection technology is used to replace some traditional sound level meters, the stability
and reliability are greatly improved.
* Large screen display is adopted, with clear and intuitive display. With dynamic scale display.
【Specification】
Microphone
| 40mV/Pa |
Frequency weighting
| A, C, and Lin(Linear)
|
| Frequency range | 20Hz-12.5kHz |
Range
| 30dB~130dB (A)
|
Range control
| Manual, three gears, linear range > 60dB
|
Testing Range
| 30dB~90dB (dynamic scale display 10~100)
|
50dB~110dB (dynamic scale display 30~120)
|
70dB~130dB (dynamic scale display 50~140)
|
Accuracy
| In accordance with IEC61672 standard, class 1
|
Time Weighting
| Fast (F), Slow (S)
|
Display
| Large screen dynamic LCD, instantaneous sound level, with analogammeter display.
|
Calibration
| Use class 1 sound level calibrator
|
Power Supply
| 4x1.5V AAA Size (UM-4) Battery
|
| External Power | 5V |
Weight
| 360g (Not Including Batteries)
|
Dimensions
| 270mmx90mmx32 mm
|
Operating Condition
| Temperature: -10
|
Standard Accessories
| Main Unit
|
Windscreen
|
Carrying Case (B04)
|
Manual
|
Optional Accessories
| External power supply (5V)
|
|
|
|
|
|
>>
