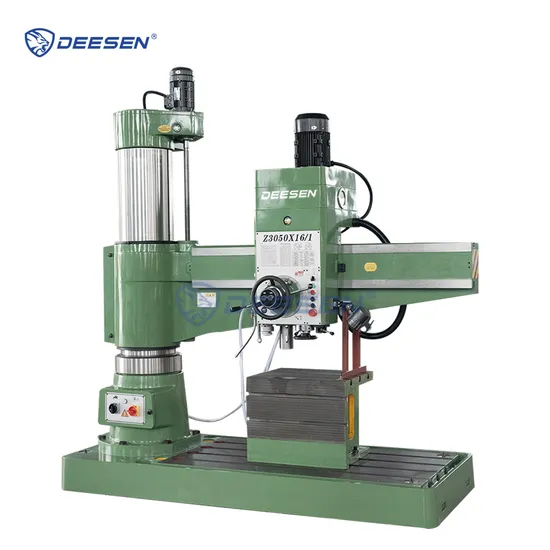

Best Selling Drilling Machinery Z3050*16 Low Cost High Rigidity Radial Drilling Machine

US$9,000.00-9,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3050X16/1
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Weight
3500kg
Max. Drilling Diameter
50mm
Spindle Speed Range
25-2000rpm
Distance Spindle Nose and Work Surface O
350-1600mm
Spindle Taper
Mt5
Rocker Arm Lifting Speed
0.04~3.20mm/R
Spindle Travel
315mm
Spindle Feed Steps
4
Spindle Speed Steps
12
Spindle Feed Range
0.04~3.20mm/R
Main Motor Power
4kw
Lifting Motor Power
1.5kw
Table Size
500X630mm
Distance From Spindle Nose to Table Surf
320-1200mm
Distance Between Spindle Axis and Column
350-1600mm
Transport Package
Wooden Case
Specification
2500*1070*2840mm
Trademark
DEESEN
Origin
China
HS Code
8459619000
Production Capacity
300/Month

Packaging & Delivery

Package Size
270.00cm * 130.00cm * 300.00cm
Package Gross Weight
4000.000kg

Product Description

Best selling drilling machinery Z3050*16 Low cost High rigidity Radial Drilling Machine
Product Description


Specifications
SPECIFICATIONS Units Z3050xl6/I
Max. drilling dia. mm 50
Distance between spindle nose and table surface mm 320-1200
Distance from spindle axis to column surface mm 350-1600
Spindle travel mm 315
Spindle taper - MT5
Spindle speed range rpm 25-2000
Spindle speed steps - 12
Spindle feed range mm/r 0.1-0.4
Spindle feed steps - 4
Main motor power kw 4
Lifting motor power kw 1.5
Machine weight kg 3500
Overall dimension mm 2500*1070*2840


Detailed Photos

CENTRALIZED MECHANICAL
SHIFT
Concentrated mechanicalspeedchange.12 steps from 40-1896r/mm.convenient and quick
Radial Arm Clamping
Radial arm mechanical clampingHigh stability.
Column Clamping
Vetical column mechanical clampingHigh stability and stronger
Table
High Audio quenching table.
Enhanced accuracy & rigidity.
Electrical BoX
High quality imported electrical box.High performance &long uselife

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
