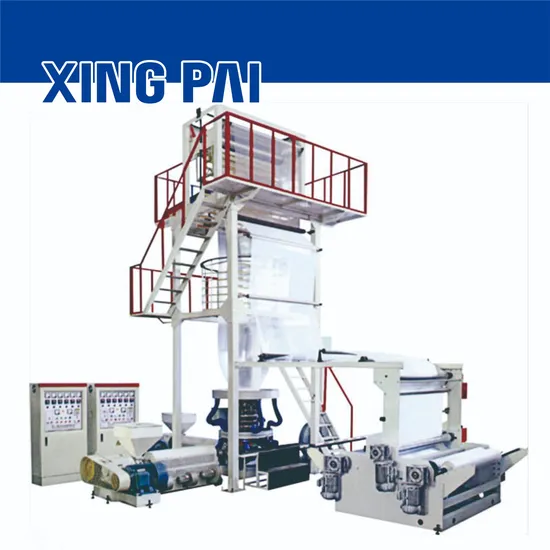

ABA 3 Layer Co-Extrusion Film Blowing Machine Automatic PP Film Blowing Machine Plastic Plastic Film Making Machine

Product Description

Product Description
Our ABA film blowing machine is suitable to make HDPE,LDPE,LLDPE,recycled material ,biodegradable material .
1. Taiwan type screw ,Bimantal ,the output is higher 30% than others2.Taiwan type die head ,bigger size .3.Taiwan type air ring ,better cooling 4.Taiwan type screw ,bimental ,which can mix material better and high output
Product Parameters
Specification:

Model	SJ--50/ABA800	SJ--55/ABA1000	SJ--60/ABA1200
Screw Diameter (mm)	45/50	50/55	60/55
Screw Length (L/D)	30:1	30:1	30:1
Film Width(mm)	200-800	250-1000	300-1200
Film Thickness(mm)	0.01-0.10	0.01-0.10	0.01-0.10
Max.Extrusion Output(kg/h)	80	110	130
Cylinder Cooling (Kw)	0.13*2	0.13*2	0.13*2
Driving Motor(kw)	11kw/15kw	15KW/18.5KW	22KW/18.5KW
Temperature Control	3/3	3/3	3/4
Average Power-consume(kw)	50kw	52kw	55kw
Die Size(mm)	80/150	100/200	120/250
Winding Speed(m/min)	10-80	10-80	10-80
Take-up Motor(kw)	1.5	1.5	1.5
Weight of machine(kg)	3000	3300	3500
Cover Dimension(m)	4.2*3.3*4.5	4.4*3.5*5.5	4.6*3.6*6.5

Detailed Photos

Other product recommendation
Other machine
workshop picture

Group picture with customer
Customer Feedback
Packaging & Shipping

FAQ

1.:Are you factory or trading company ?
we are factory specialized in plastic machine for many years ,all of our engineer with more than 20 years experience .
2. Where is your factory? How can i visit your company?
our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train).we will pick you up on airport or station .welcome to visit our factory
3 How long is your delivery time?
On normal our delivery time is 30-45 days .if you need it ugently ,we can make your machine first.about 10 days
4.:What's your warranty policy?
18 month guarantee and whole life maintance ,

5:What package do you use for the product?
Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost .

6:Does your factory provide installation service?
Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.
7:What are your terms of payment?
We accept T/T, L/C. western union.
8. How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
9: Does your engineer understand English?
A: Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.

---
