Ship/Boat Launching Marine Pneumatic Rubber Airbag

Product Description

1.Landing Lifting Material Launching Marine Rubber Airbag
Marine airbag is an innovative product with independent intellectual property rights in my country. Marine airbags are widely used, and the products are less restricted by the site, without the need for large-scale mechanical equipment, which can shorten the work cycle and save a lot of money. Through years of development and practice, the product has the characteristics of safety, high efficiency, green environmental protection, flexibility and so on.

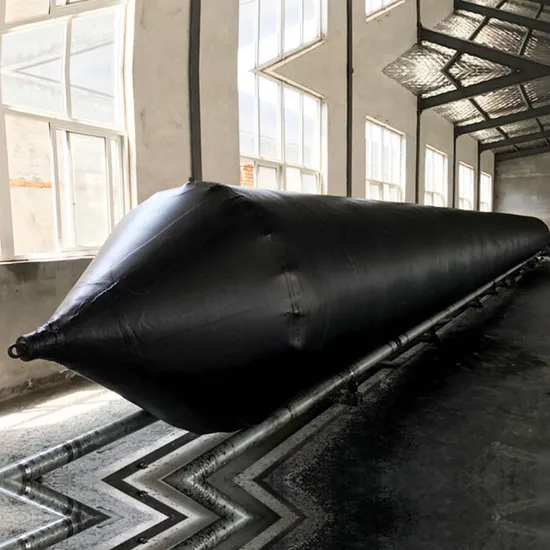

Marine air bag is a flexible heavy object carrier designed using the principle of rolling logs. The marine airbag produced by integral winding is more reasonable in structure and has a higher safety factor and bearing capacity.
2.Main Features of Landing Lifting Material Launching Marine Rubber Airbag
1.Use high-quality imported natural rubber, such as RSS and 3L natural rubber from Thailand and Malaysia, with good elasticity,
Anti-cracking and no delamination, at the same time, in rubber manufacturing, high-efficiency anti-aging agent is used, which is environmentally friendly and does not crack.
2.Using 3 strands of nylon cord, the tensile breaking strength is 31 kg, the tensile strength is high, the bearing capacity is high, and it is safe and reliable
3.Overall winding process
The overall skeleton of the airbag adopts cross-wound winding, reasonable structure, clear lines, no joints, high load, large safety factor, and 20% more load than the lap joint (ground rolling) process.
4.The airbag structure is composed of outer natural rubber with nylon cord reinforced rubber layer
5.Its shape features: cylindrical in the middle + tapered at both ends.
6.Layers of nylon cords: 4, 5, 6, 7, 8, 9, 10, 11, 12 7.Customizable size and printing
8.High bearing capacity and gas tightness
9. High resistance to knead ability
10.The new structure design of accounts at the end
11.Optimization of structural layout
12.Durable anti-aging abilities and wear characteristics
13.Higher flexibility and shock absorption ability
3.Main parameter
The conventional diameter of the airbag can be 0.5m-2.5m, the length can be 5-28m, and the number of layers can be 4-12 layers. Other models can also be made according to customer needs. Detailed pictures of Landing Lifting Material Launching Marine Rubber Airbag

---
