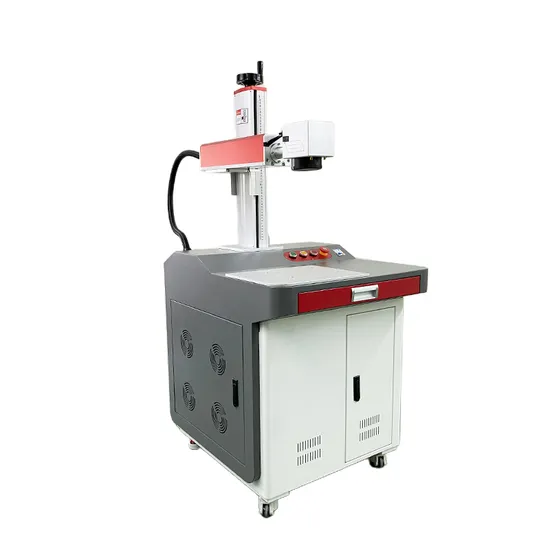

High Quality Desktop Fiber Laser Marking Equipment for Metal Aluminum 20W 30W 50W Laser Printer

Product Description

Specification

Laser source brand	RAYCUS/MAX/JPT	20W marking area	110*110mm/150*150mm /175*175mm(marking light)
Laser source power	20W/30W/50W/60W/70W/80W/100W/120W	30W marking area	110*110mm/150*150mm/175*175mm /200*200mm/220*220mm(marking light)
Max single pulse energy	0.67mj	50W marking area	110*110mm/150*150mm/175*175mm /200*200mm/220*220mm/300*300mm
Pulse duration	90-120ns	60W/70W marking area	110*110mm/150*150mm/175*175mm/200*200mm/220*220mm/300*300mm
Laser wavelength	1064nm	80W/100W/120W marking area	110*110mm/150*150mm/175*175mm/200*200mm/220*220mm/300*300mm
Frequency	30KHz~80KHz	Marking depth	0~1.0mm
Laser power density	80ZMW/mm2	System environment	WINDOWS XP/7/8/10
Max position speed	7000mm/s	Repeat accuracy	0.005mm

Description Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products suchas mobile cover & charger, consume electronics housing and etc. Our laser marking machine adopts the best quality fiber laser source in the world. We have 20W/30W/50W/60W/70W/80W/100W/120Wfor optional. The estimated life for laser source will be around 100,000hours. Application Applicable Materials 1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition 2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material Applicable Industry Jewelry, watches, phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, auto parts, luggage buckles, cookware , stainless steel products and other industries.
Samples Effect

Name: fiber laser source
Brand: MAX/RAYCUS (High quality and stable power out)

Name: JGZ - scan lens
Professional for laser use, high light transmission and high hardness

Name: galvo scanne-SINO-GALVO
The scanning head of the high-speed ammeter adopts digital signals with high accuracy.
Name:Motherboard
Brand:BJJCZ
Software version:EZCAD 2.14.11
Can be with wins XP7/8/10
The standard accessory package is as follows
Certifications
Our laser marking machine have passed European CE and American FDA certicates
Company and Products Advantage:
Delivery time is guaranteed
15000m3 laser equipment processing workshop.
100-150 laser cutting machines are inspected and accepted every month.
Reasonable production management process to ensure the machine quality.
Every front-line production worker has undergone strict pre-job training.
One worker only completes one process of product production to ensure the production of high-quality products. Each process is inspected to ensure the accumulative accuracy of the product.
FAQ
Q: In case machine exists problem, how to do after sales service?
A: We provide laser source 3 years, machine two years warranty. During the two-year warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.
Q: What's package?
A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

---
