12inch 16′′ Disc 316L Stainless Steel Sanitary Lenticular Water Filter Cartridge Housing with Depth Stack Filters

Product Description

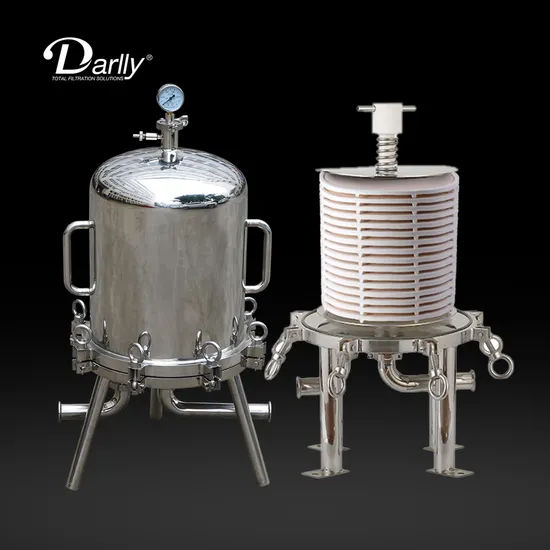

H Series Lenticular Filter Housing is a new type of depth-stack Filter Housing. The structure is designed and manufactured according to sanitary requirements, the well-polished housing leaves no residual liquids and is easy for cleaning. The flow in and out both from bottom effectively avoid the liquid turbulence. It is available for 8", 12" and 16" diameter filters, which can be max. to install 4 depth-stack filters to meet high flow rates requirements.
Applications
· Pharmaceuticals: filtration of biological products such as LVP, vaccines and serums etc.
· Food and beverage: filtration of alcohol, beer, beverage, syrup and edible oil etc.
· Chemical industry: filtration of grease and dirt, sludge and gelatinous materials etc.
Features
· Ultra-high polishing level,internal: Ra≤0.3μm, external: Ra ≤0.4μm
· The flow in and out both from bottom effectively avoid the liquid turbulence. Specially designed drain valve can be equipped at inlet and outlet for easier liquid drainage
· The filter housing can be vertically installed up to 4 depth-stack cartridges, it has low cost-investment and high filtration efficiency
· Multi-segment opening options can make it more convenient to replace depth-stack cartridges and help to reduce liquid leakage
Product Specifications

Materials	Filter Shell	Stainless Steel 304, Stainless Steel 316L
	Vent Valve	Stainless Steel 304, Stainless Steel 316L
	Eyebolt	Stainless Steel 304
	Leg	Stainless Steel 304
	Seal Material	Silicone, FKM, EPDM
Surface Finish	Finish Type	Electropolished, Mechanical polishing
	Polishing Rating	Internal: Ra≤0.3μm
		External: Ra≤0.4μm
Operating Conditions	Design Pressure	0.6Mpa (6bar)
	Max. Operating Temperature	150ºC
Connections	Shell Connection	Eyebolt
	Inlet & Outlet	Tri-clamp / Flange
	Vent Valve/Drain Valve	Inner bole 4mm, connect with 8mm pipe
	Pressure Gauge (Option)	TC-1.5"

Drawing and Dimensions
Ordering Information
