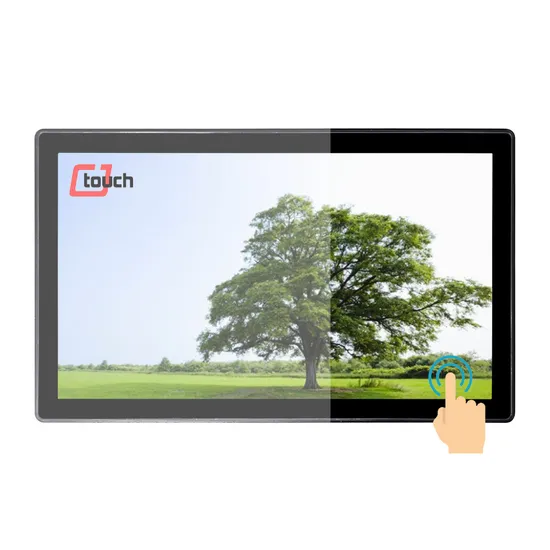

Open Frame 18.5" Touchscreen Monitor with Capacitive Touch Screen 18.5 Inch Flat Panel Waterproof Kiosk LCD-Display Computer-Products

Product Description

18.5"Project Capacitive touch screen monitor with VGA ,DVI and HDMI Waterproof and Vandalproof Product Description
Capacitive touch screen Features(7-65 inch)
With 3mm/6mm tempered glass Vandal-proof
Multi-touch 10 points
High Compatibility of hardware & Software
Support Operation System Xp/Win7/Win8/Win10/Linux/Android
Fast response
Dongguan Cjtouch Electronic Co.,Ltd, located in Dongguan (China)
the city famous with advanced manufacturing,was built on 2009. It's a hing -tach enterprise mailly specialized in researching,
We've provided customers with innovative touch solutions for over 10 years. Our touch screen products are perfect for hospitals, schools, homes, kiosks, offices, and retail displays. Simple to connect and easy to use, touch screens allow you to turn any monitor into an interactive display.
Five different keys are well-defined for operation . They are labeled on the keypad. [Power] Key is designated for Power On/Off [Menu] Key is designated for Menu/Enter function depending on the selected item. Pressing [Menu] can invoke OSD menu. After that, [Menu] is also an entry key. [+] key is designated for selection function in up direction in OSD menu and also to increase the value on selected function,Directly use + Key is to increase brightness. [-] key is designated for selection function in down direction in OSD menu and also to decrease the value on selected function,Directly use - Key is to decrease brightness. [AUTO] key is designated for invoking AUTO ADJUST function at any time once is pressed for H-position, V-position, Pixel Clock and Phase for an optimal image.

General Specifications
Model	COT185-CFK03
Series	Open Frame,IP65 Water-proof & Vandal Proof
LCD Type	18.5" a-Si TFT-LCD
Video Input	VGA, DVI and HDMI
OSD controls	Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick
	Input (line) voltage: 100-240 VAC, 50-60 Hz
	Output voltage/current: 12 volts at 4 amps max
Mount Interface	1)VESA 75mm and 100mm
	2)Mount bracket, horizontal or vertical (Kiosk Mounting)
LCD Specification
Active Area(mm)	409.8(H)×230.4(V)
Resolution	1366×768(60Hz)
Pixel Pitch(mm)	0.300(H)×0.300 (H×V)
Viewing angle (v/h)	85°/85°/80°/80°(CR>10)
Contrast	1000:1
Luminance(cd/m2)	250
Response Time(Rising)	3.6ms/1.4ms
Support Color	16.7M colors
Backlight MTBF(hr)	50000
Touchscreen Specification
Type	CJTouch Projected Capacitive touch screen with 3mm Vandal Proof Glass
Multi touch	10 points touch
Touch Life Cycle	50 millions
Touch Response time	7ms
Touch System Interface	USB interface
Power consumption	+5V@80mA
External AC Power Adapter
Output	DC 12V /4A
Input	100-240 VAC, 50-60 Hz
MTBF	50000 hr at 25°C
Environment
Operating Temp.	-10~55°C
Storage Temp.	-20~60°C
Operating RH:	20%~80%
Storage RH:	10%~90%
Industrial Projected Capacitive (PCAP) Open Frame Touch Screen Monitors - COT SERIES:10.1"-55"

18.5" pcap touch monitor Features
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· High Light Transmission Clear Glass
· Industrial Desgin With Excellent Durablity
· Factory Competitive Price & Fast Delivery
· PCAP Technology Multi Touch 10 Touch Points
· IP65 Touch Screen Surface Water-Proof Sealled
· 3MM Enhanced Glass With Vandal Proof Resistance
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc
18.5 inch Capacitive PCAP TouchScreen Monitor Display Drawing
TouchScreen/ LCD Monitor / Touch Compupter Applications :
1. Business Institutions: Department Store, Super Market, Exclusive Store, Hotel, Restaurant, Medicine Store`
2. Financial Institutions: Bank, Stock Market, Insurance Company, etc.
3. Public Services: Hospital, School, Telecom Hall, Post Office, etc.
4. Public Places: Subway, Airport, Bookstore, Park, Exhibition Center, Stadium, Museum, Ticket Agency, etc.
5. Real Eatates: Apartment, Villa, Business Building, HR Market, Lottery Center,etc.
6. Entertainment Places: Cinema, Gym, Holiday Inn, Nightclub, Massage Parlor, Internet Cafe, Golf, etc.
Packaging & Shipping
Warranty & Components
1 Year Free Warranty for Monitor and all components.
USB Cable *1 Pcs,
VGA Cable *1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs
RS232 Cable & DVI Cable Sold Separately

Packing & Delivery
1/2 sets/carton,EPE packaging inside ; Net Weight : 7 kg/pcs
Company Profile

Company Introduction--CJTOUCH
Dongguan CJTOUCH Electronic Co., Ltd are 10 Years of a Professional OEM Manufacturer and Supplier ;
Main Product : Touch Screen, Touch Foil, LCD/LED Monitor, Touch PC, Kiosk and Accessories etc.
Our Main Factory is located near Shenzhen,China.
