500kg/H Recycling Machine/Pet Bottle Recycling Line

Product Description

Waste Plastic Recycling Machine/500kg/H Waste Plastic Recycling Machine/plastic bottle washing line/PET bottle recycling line
1 Feature
1.Plastic recycling washing machine is applied in PET waste bottle or sheet recycling field.

2.Through crushing, washing and dry process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.

3.The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.

4. recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.

5. recycling machine output we can supply is from 300kg/h to 2000kg/h.

6.We can also produce the plastic pipe extrusion line,plastic profile extrusion line,wood plast composite extruion line,plastic recycling productio line.

Welcome to visit us at any time and please feel free to contact us for more details.

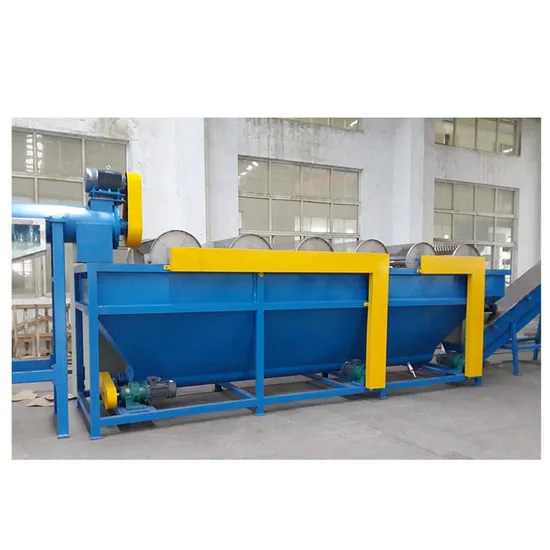

PET Bottle Recycling Machine
2 Work Processing
Belt conveyer → Rolling separator →Manual pick table → Metal separator → Belt conveyer → Crusher → Label Separator → Hot washer 1 → Friction washing machine → Hot washer 2 → High-speed friction washing machine → Rinsing tank → Spray washing→ Dewatering machine → Blower dryness system → Storage hopper → Finished product packing
Technical Parameter

Product capacity	300kg/h	500kg/h	1000kg/h	1500kg/h
Workshop(L*W*H)	40m*7.5m*6m	42m*10m*6m	70m*12m*6m	75m*15m*6m
Needed worker	3-4 persons	5-6persons	7-8persons	10-12persons
Water supply (recycle use)	2-3ton/h	3-5ton/h	7-10ton/h	10-15ton/h
Final product quality	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 10-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 100-320ppm

---
