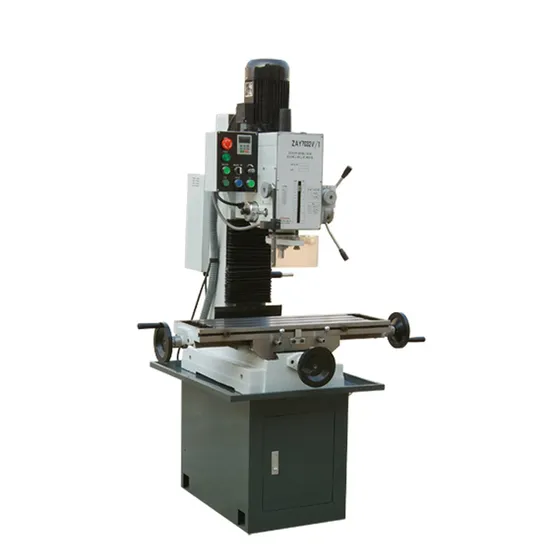

Zay7040V Bench Small Vertical Mini Drilling and Milling Machine

US$700.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
ZAY7040V
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Drill Capacity
32mm
Taper
Mt3
Motor
1.1kw
Spindle Travel
130mm
Table Size
800X240mm
Transport Package
Plywood Case
Specification
125kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month

Product Description


DRILLING MILLING MACHINE FEATURES:
The main performance characteristics:
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
PRODUCT MAIN TECHNICAL PARAMETERS:
ITEM ZAY7032V ZAY7040V ZAY7045V
Drilling capacity 32mm 40mm 45mm
Max Face mill capacity 63mm 80mm 80mm
Max End mill capacity 20mm 32mm 32mm
Distance from spindle
nose to table		 400mm 400mm 400mm
Min.distance from spindle
axis to column		 285mm 285mm 285mm
Spindle travel 130mm 130mm 130mm
Spindle taper M.T.3 or R8 M.T.4 or R8 M.T.4 or R8
Range of spindle speed
(2 steps)		 100-530,530-2800r.p.m, 100-530,530-2800r.p.m, 100-530,530-2800r.p.m,
Swivel angle of headstock
(perpendicular)		 ±90° ±90° ±90°
Table size 800×240mm 800×240mm 800×240mm
Forward and backward travel
of table		 175mm 175mm 175mm
Left and right travel of table 500mm 500mm 500mm
Motor power(DC) 1.1KW 1.1KW 1.5KW
Voltage/Frequency 110V or 220V 110V or 220V 110V or 220V
Net weight/Gross weight 300kg/350kg 310kg/360kg 310kg/360kg
Packing size 770×880×1160mm 770×880×1160mm 770×880×1160mm
