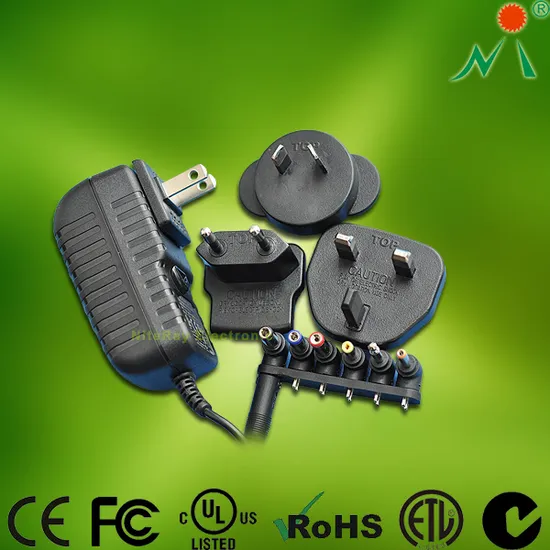

Universal Plugs AC DC Adapter with Interchangeable Plugs Power Adaptor

Product Description

Universal Plugs AC DC Adapter with Interchangeable Plugs Power Adaptor 1) Travel adapter wall adapter with interchangeable plugs power adapter charger 2) Universal interchangeable plugs: UA,EU,UK,AU
3) UL/FCC/CE/CB/C-Tick/SAA/BEAB/GS
4) Slim and compact design
PRODUCT HIGHLIGHT: Complete, inexpensive, self-contained Regulated power source Super power supply, fixed frequency control circuit guarantees Stable ,long-lasting output required by any mobile Electronics, such as mobile phones , PDA, Digital camera , CDMA Digital phones, Walkie-talkie, tester machine, HUB, Modem, Scanner, Printer and much more Extra safe design ,all with their respective Safety approvals Ultra low no-load /standby power consumption, meeting EC 2005 green power requirements Light ,sleek ,and compact design On-line LED power indicator High efficiency circuitry that generates little heat B urn-in EMI filter Travel charger adapter with Eu plugs
PROTECTION: Short circuit protection Over voltage protection Over current protection Thermal shutdown capability RELIABILITY: Burn-in : 100% full load ,40 ±5°C,4Hrs min Leakage Current : 0.25mA max. at 254Vac Withstanding Voltage :(between primary & secondary) 3000Vac 1 minute 10mA max MTBF : meet MIL-HDBK-217F over 50K hours, full load,25 °C SAFETY APPROVALS: UL60950 3 rd edition CAN/CSA C22.2 NO.60950 EN60950:2000 CE(Low Voltage Directive) AS/NZS 60950:2000 PSE IEC60950 GB4943-2001 EMISSIONS: FCC Part15 class B EN55022 class B AS/NZS3548,AS/NZS4251.1 class B VCCI class B CNS13438 class B GB9254-1998/GB17625.1-2003 CISPR22 class B IMMUNITY: EN55024/A1:2001 Electrostatic discharge:61000-4-2 Radiated electromagnetic fields:61000-4-3 Fast transients(burst):61000-4-4 Surge transients:61000-4-5 Conducted disturbance:61000-4-6 Voltage dips, interruptions&variations:61000-4-11

Style:Plug-in & Desk Top	Spec
Dim (L*W*H) =mm
Available Model: US, EU, AU, UK

Travel charger adapter with USB port:
Electrical Specifications:

Description	Symbol	Min	Typ	Max	Units	Comment
Input
Voltage	V IN	90	120/240	264	V AC	2 Wire no Protective Ground
Frequency	F LINE	47	50/60	63	Hz
No-load Input Power(230VAC)				0.5	W
Efficiency	η		75		%
Inrush Current(240Vac)	I		40		A	Cold 25 o C
Environmental
Operating Temperature	T	0	/	40	o C	Free convection, Sea level
Non-operating temperature	T	-20	/	80	o C	Free convection, Sea level
Operating humidity	T	10	/	90	%RH	Non condensing
Non-operating humidity	T	10	/	90	%RH	Non condensing

INPUT CONDITION		DC OUTPUT VOLTAGE	DC OUTPUT CURRENT	OUTPUT VOLTAGE PRECISION	RIPPLE & NOISES	REGULATION		MAXIMAL OUTPUT POWER
						LINE	LOAD
Input voltage: 90-264VacFrepuency: 47-63Hz Inputcurrent: 0.6A	1	3.0-4.0V	0.1-4.0A	6%	100 mV	± 1%	± 5%	16W
	2	4.1-6.0V	0.08-4.0A	6%	100 mV	± 1%	± 5%	24W
	3	6.1-6.9V	0.07-4.1A	6%	100 mV	± 1%	± 5%	25W
	4	7.0-8.0V	0.06-3.57A	5%	100 mV	± 1%	± 5%	25W
	5	8.1-9.0V	0.055-3.09A	5%	100 mV	± 1%	± 5%	25W
	6	9.1-10.0V	0.05-2.75A	5%	100 mV	± 1%	± 5%	25W
	7	11.1-11.9V	0.04-2.25A	5%	100 mV	± 1%	± 5%	25W
	8	12.0-17.9V	0.04-2.5A	5%	100 mV	± 1%	± 5%	30W
	9	18.2-22.0V	0.035-1.67A	5%	100 mV	± 1%	± 5%	30W
	10	22.1-30.0V	0.03-1.36A	5%	100 mV	± 1%	± 5%	30W
	11	30.5-31.0V	0.025-0.98A	5%	150 mV	± 1%	± 5%	30W
	12	31.5-48.0V	0.02-0.95A	5%	150 mV	± 1%	± 5%	30W

We have been applied different safety certifications for all products, including latest UL62368-1. Home appliances/IEC61558; Battery charger/IEC60335; All power adaptor got UL, cUL, ETL,FCC, CB, GS, CE, SAA, C-tick, PSE, BSI, KC, CCC etc. Supply high quality power supply to global customers
We have been adopt automatic production equipment since 2012, such as latest automatic test and aging system, not only improve quality and increase productivity, but also reduce labor cost to offer customers competitive price
Workshop scale over 5000 square meters, with more than 200 skilled workers and 50 experienced technical teams and sales dept. Passed ISO9001 quality management system, and adopt top ERP management system
We are looking forward to cooperation with you !

---
