ZICAR nanxing vertical single row drilling hole multi spindle boring machine woodworking

Product Description

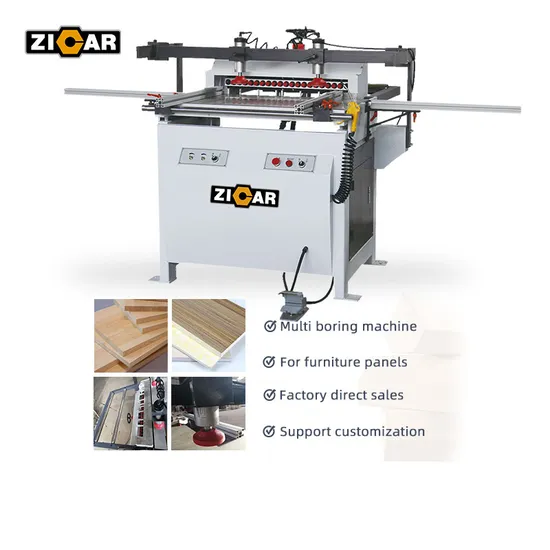

ZICAR Multi Boring machine MZ1
Introduction Boring is a machine that punches multiple holes on the plate at one time according to the demand. This model is mainly used in the process of vertical holes and horizontal hole for customized furniture such as cabinets and wardrobes. Can be used as cabinet or door panel. Suitable for large and medium-sized custom furniture factories.

Product parameter

Model	MZ1
Manimum drilling diameter	35mm
Manimum drilling depth	60mm
Number of auger shaft	21
Rotation speed	2800r/min
Motor power	1.5kw
Air pressure	0.6-0.8Mpa
Overall size(LxWxH)	2000x1300x1300mm
Packing Size	1400x1300x1400mm
20'GP	2 sets
40'GP	4 sets

Detailed Images
Row drilling is a machine that drills multiple holes on the plate at one time according to the needs. This model is mainly used for cutting, slotting, and vertical hole punching for custom furniture such as cabinets and wardrobes. It can be used as a cabinet or as a door panel. It is suitable for large and medium-sized customized furniture factories.
Company Profile
Features
1. Foldable guide bar for rip fence.
2. Boring unit pneumatical tiltable 0,45,90 degrees.
3. Drill board in single line with CE certificate.
4.This machine is suitable to the mortise process of solid wood,shaving wood and MDF.
5. It is easier operation,high efficieny and accuracy.
6. It can drill at the directions both horizontal and vertical,which is the necessary machine for wood industry.

---
