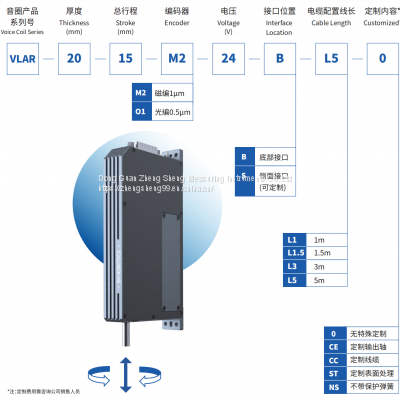

Voice Coil Linear Rotary Actutor

Product Details

Product Description

Product Description
Technical parameters
Peak thrust ：16.5N
Continue to push ：8N
Total trip ：15mm
Force repetition accuracy ：±3g
The force constant ：6.7N/A
Maximum torque ：0.04N.m
Maximum speed ：2000rpm
Linear stroke resolution :1μm（Magnetic braiding） 0.5μm（Light make up）
Position repeat positioning accuracy ：±5μm（Magnetic braiding） ±2μm (Light make up)
Rotary encoder resolution :0.02°（Magnetic braiding） 0.05°（Light make up)
The mechanical parameters
The overall quality ：555g（Magnetic braiding） 650g(Light make up)
Move the quantity : 144g（Magnetic braiding） 156g（Light make up）
size ：140mm×80mm×20mm（Magnetic braiding） 160mm×83mm×20mm(Light make up)
Runtime environment
Working voltage ：24V DC±10%
Sustained current ：1.2A（A straight line） 0.6A（rotating）
Peak current ：2.5A（A straight line） 2.5A（rotating）
Protection grade :IP40
Recommended Work Environment :0~40°C，85%RHThe following
In line with international standards ：CE,FCC,RoHS

---
