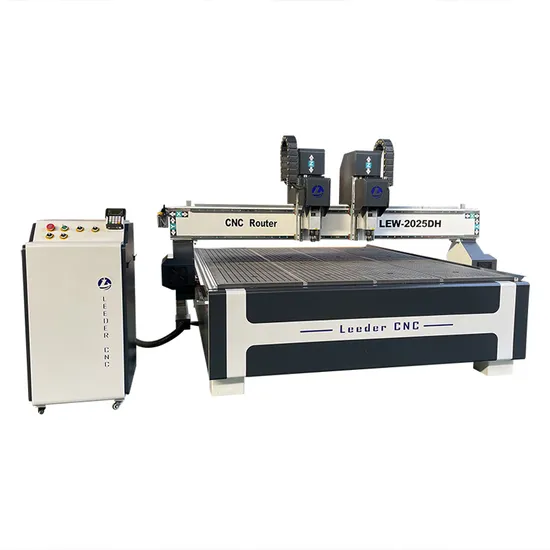

China Machinery CNC Router Two Spindle Wood Cutting Machine

Product Description

Machine Features
1. Machine with strong lathe bed, high steel stability,ensure high precision,reliable performance,long using lifetime.
2. Y axis is with double motor driving,ensure stable processing.
3. Adopting high precision rack transmission, high precision &speed.
4. Unique multi spindles designed,Spindle quantity&power can be optional,the distance between spindles can be adjusted.
5. Digital computer controlling, high efficiency auto process.saving much time&cost,improving production efficiency.
Product Parameters

Model	LEW-2025DH
Working Area	2000 x 2500 x 200mm
Spindle Power	3.5kw Air Cooling Spindle
Control System	DSP / NC Studio / Mach3
Driving System	Stepper / Servo
Working Table	Vacuum Table With T-slot
Transmission System	XY Axis Helical Gear Rack And Z Axis TaiwanTBI Ball Screw
Guide Rails	Taiwan HIWIN square rails
Inverter	Fuling
Working Accuracy	±0.05mm/m
Travelling Speed	0 - 30m/min
Working Speed	0 - 15m/min
Voltage	380V/220V, 50-60HZ

Detailed Photos
Sample & Application
1. Craft & gift industry: engrave various word or graph on the souvenir and handicraft, ironwork engraving, dials.
2. Advertising industry: engrave and cut various signboards, marble, copper, character mold, font. And various metal sign, brand.
3. Wood working industry: mainly used in redwood classical and antique furniture, wood carving, gifts wooden box ,redwood jewelry boxes, ink-stone cutting, decorative products sculpture, fine jewelry carving.
4. Model industry: company plate, signs, building models, emblem, badge, display panels, fair signs, building numbers, signs of decoration, shoes, badge, embossed mould, biscuit, candy, chocolate mould.
5. Other lines: also used in portraits, landscapes, calligraphy lettering, seal carving and other plane surface carving, basso-relievo.
