Hot Salling High Precision Bench Drilling Machine DN5025

Product Description

Product Description

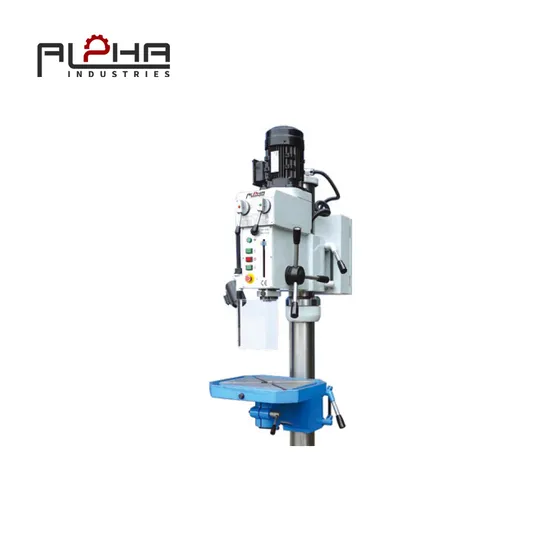

High Precision Fabricado En China Hot Sales DN5025 Column Type of Vertical Drilling Machine
Product Parameters

Model NO.	DN5025	Controlling Mode	Artificial
Automatic Grade	Manual	Precision	High Precision
Certification	CE, ISO 9001	Condition	New
Specification	700x500x1900mm	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Technical Parameters
Model No.	Unit	DN5025
max. drilling diameter(steel)	mm	Φ25
max. tapping diameter		M16
max. travel of spindle	mm	110
max. distance from spindle to generating line of column	mm	240
max. distance from spindle nose to surface of worktable	mm	630
max. distance from spindle nose to surface of base worktable	mm	1100
max. travel of spindle box	mm	250
max travel of worktable and bracket	mm	450
spindle taper bore		MT3
spindle speed steps	steps	6
spindle speed range	r/min	125-2825
spindle feed steps		-
spindle feed range	mm/r	-
dimension of worktable	mm	350x400
effective working area of worktable	mm	310x320
diameter of column	mm	Φ95
power of motor	W	750
machine dimension	mm	700x500x1900
packing dimension	mm	750x550x1950
N.W./G.W.	Kg	300/350

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
