Classical Type CNC High-Efficiency CNC Turning Machine Tools Mini Bed Lathe

Product Description

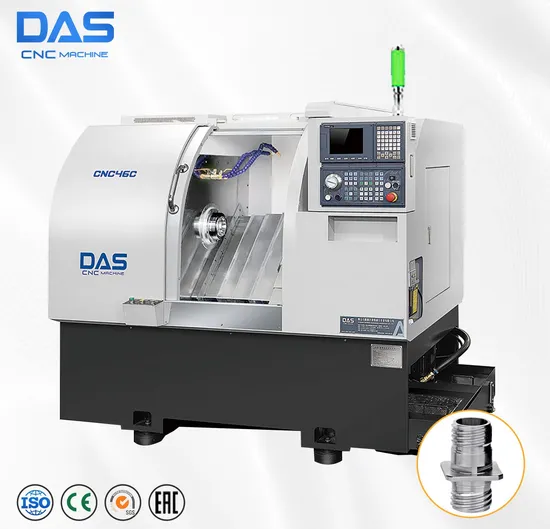

DAS 36/46C Torno CNC High Precision Metal Automatic Hydraulic Power Slant Bed CNC lathe Machine Product Description

1.The inclined placement oflathe carriage and tool holder makes machine tool operation and chip removal more convenient.CNC36C/46C pleasant design appearance and less space occupation.

2.160 three- jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange.
3.The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing scre w and high speed linear slide rail,a famous brand from Taiwan and is provided with co mputer automatic lubrication syste m for forced lubrication of linear guide rail and ball bearingscrew.
4.For X axis and Z axis,high rigidity linear slide rail is adopted with optimu m span between rails through calculation. With low resistance,high rigidity and high precision, the displacement speed can reach up to 30M/min so as to improve working efficiency and reduce processing time.
5.Workpiece clamping type:hydraulic
6.DAS Machine tool hydraulic supply unit,oil reservoir Volume increase,better heat dissipation,work more stable.

Product Parameters

Name	CNC46C
The style of installation tool	Gang type
Adjacent tool change time (s)	0.2
Tool change style	Random
Square knife knife holder (mm)	20×20
Round hole knife holder (mm)	φ20
With chuck size	6 Inch
Spindle speed (r/min)	45-4500
Spindle bore (mm)	φ56
Center height (mm)	56
The maximum diameter of rotation (mm)	400
Spindle motor power (KW)	5.5
Minimum system Resolution	0.001
X/Z Axis stroke (mm)	340/250
X/Z axis fast moving speed (m/min)	26(Factory setting)
X/Z axis Repetitive positioning accuracy (mm)	0.002/0.002
Taper (mm)	≤0.003/100mm
Card position size (mm)	≤0.003
X servo-motor (KW)	0.85
Z servo-motor (KW)	1.3
Hydraulic station (KW)	0.75
Water tank motor power (KW)	150W
Cooling water tank capacity (L)	60
(mm)	1015
Power (KW)	11
Weight (KG)	2900
Size (L*W*H mm)	2300*1350*1760

Detailed Photos
Machine Feature
1. Super rigidity The body structure is one piece, with a solid base and a downfeed centre, 45° saddle design for good vibration damping and reduced deformation, providing a very stable base for the head and turret, 45° sloping bed structure for easy loading and unloading of steel and smoother chip removal.
2. Modern and popular control components The DAS 46 series is available with the optional FAUNC 0iTF control package and Siemens 828D control package, 8.4' display, 10.4' display, additional interfaces, etc.
3. Superb price/performance ratio The 46C series of German origin has the best components, such as SAUTER turret and NSK bearings, which guarantee the high precision performance of the 46C series. At the same time we offer competitive prices, making the 46C series superbly cost effective.
4. User-friendly design Minimal space occupation, but mostly in line with the actual working area, full protective cover, humanized aesthetic design, stainless steel telescope cover, providing a safe and clean working environment and more durable.
5. Rich choice Electric turret, servo turret, power turret, upgraded spindle power, upgraded spindle torque, upgraded cylinder and chuck inner diameter, drawer type cooling tank, tool probe, oil mist remover, etc. for customers to choose from.
6. High efficiency assembly line operation (optional) Thanks to the advanced truss drive, multiple machines can be combined together to complete a task, greatly reducing the drive time between each process and increasing efficiency.
Good Feedback

Company Profile
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District,Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality. Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes,featuring space saving, low cost and diversified arrangement etc. They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof,electronic industry, optical instruments, clocks and watches as well as special motors etc. We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service,which ensure us.
