Automatic 5 Gallon Water Filling Machine / Bottling Plant / Production Line

Product Description

Product Description

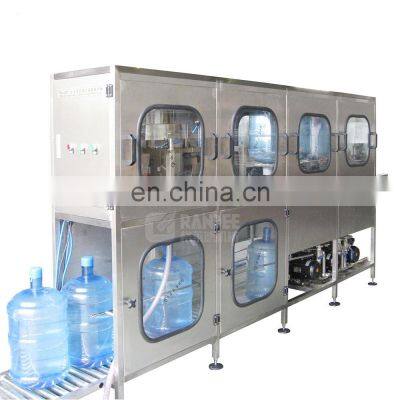

Automatic 5 Gallon Water Filling Machine / Bottling Plant / Production Line
Product Description
Functions and features:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Main machine show:
Semi automatic cap pulling out and inside brusher washing machine
Washing part
Filling and capping part
Hot Selling Products
Main technical parameter

Model	QGF-100	QGF-200	QGF-300	QGF-450	QGF-600	QGF-900	QGF-1200
Filling heads	1	2	2	3	4	6	12
Volume	3&5 Gallon
Barrel size	Φ270*490mm
Capacity(b/h)	60-100	100-240	250-300	400-450	600-800	800-900	1000-1200
Air pressure(MPa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Air consumption(m³/min)	0.37	0.37	0.6	0.8	1	1.5	1.8
Motor power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated power(kw)	1.38	1.75	3.8	3.8	7.5	9.75	13.5
Rated voltage	380V/ 50HZ
Weight(KG)	680	800	1500	2100	3000	3500	4500

Company information
Workshop detail
Our team
Our exhibition
Our Services
Customer's service:
1.Grandee company can provide turn-key project for you, only you have any idea to start beverage factory plant.
2. Grandee company have professional design team, our engineer can draw bottle samples and flow chart of
workshop for you .
3. Grandee company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle
material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance
service.
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

---
