Vertical CNC Wheel Lathe Mobile CNC Wheel Lathe

Product Description

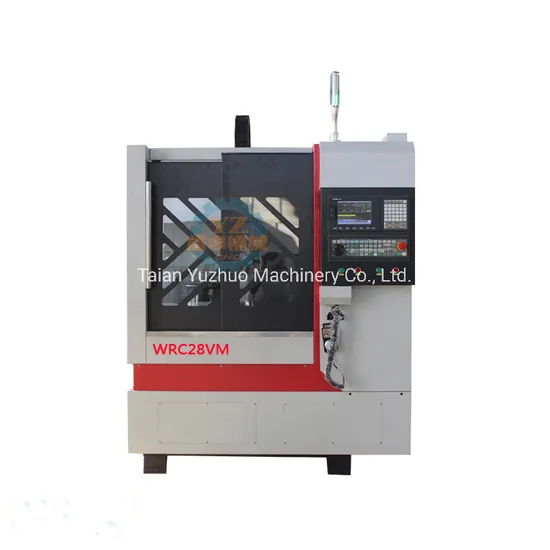

Vertical CNC Wheel Lathe Mobile CNC Wheel Lathe With Linear Guide
Product Description
Specification

No.	Item	WRC28VM
1	Max. swing over bed	820mm
2	Max. process diameter of wheel	780mm
3	Max. size of wheel repair	30inch
4	Chuck diameter	320mm
5	Spindle speed	50-1500rpm
6	Cutting speed	0.1-1000mm/min
7	Max. travel	X/Z: 410/400mm
8	Rapid speed	X/Z: 8000mm/min
9	Tool post	Manual 4 position tool post
10	Section of tool post	25×25mm
11	Feed motor power	X/Z: 1.6kw/10Nm
12	Linear guide nominal width	30mm
13	Accuracy	0.015mm
14	Repeatability	0.012mm
15	Main motor power	7.5kw
16	Weight	1300kg
17	Dimension	1460×1570×2030mm
18	Package size	1600x1700x2200mm

Standard Components
1.Diamond Cutter
2.3-Jaws Manual Chuck(With Special Soft Jaws)
3.Diamond Digital Probe Tip
4.Taiwan SYNTEC Controller
5.Manual Quick Change Toolpost,Four-station;
6.Work Lighting System;
7.Automatic Lubrication System;
8.Cooling System;
9.Full Cover (Security Guard Door);
10.Accesssories Tools and Tool Box
11.Wheel Curve Optimize Software
Services:
1-After-sales services: Warranty is one year; we would offer the parts (quality problem) free of charge during this period, freight collect.
2-Alloy Wheel Refurbishemnt Advice from REAL WORLD experts in the Diamond Cutting and Alloy Wheel Refurbishment industry
3-Mechanical Support
4-Software Support
5-Comprehensive Training
6-Probe alloy wheel profile
Just PROBE & Diamond CUT !
Once the machine has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!
The machine work steps
1-Probe alloy wheel profile,transformation G code
2-Diamond cut the wheel.

Vertical Wheel CNC Lathe Machine Photos
