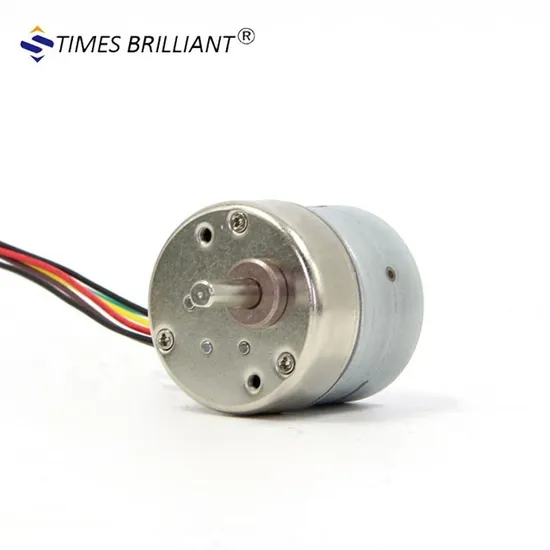

0.4A 1nm 3rpm Mini 5V /12V Stepper Motor with Geared Ratio 120 for Telescope

US$9.50
5-19 pieces
US$9.00
20-99 pieces
US$8.50
100+ pieces

Basic Info.

Model NO.
35YF22GN120R-TF0
Number of Stator
Two-Phase
Excitation Mode
PM-Permanent Magnet
Function
Driving
Number of Poles
4
Operate Mode
Three Phase Double Beat
Type
Hybrid
Certification
CE
Brand
Shidai
Troque
160n.Cm
Phase
2/4
Current / Phase
0.4A
The Temperature Rise
-25 ºC + 55
Motor Width
35mm
Resistance
30Ω±10
Mass
0.15kg
Voltage
12V
Insulation Grade
E Class
Ratio
120
Current
0.4A/Phase
Transport Package
Polyfoam, Cardboard Carton
Specification
90X90X185
Trademark
New Times
Origin
Beijing, China

Packaging & Delivery

Package Size
45.00cm * 45.00cm * 60.00cm
Package Gross Weight
3.000kg

Product Description

Product Description
China low cost 0.4A 1NM 3rpm mini 12V stepper motor with geared ratio 120 for telescope or Medical device
Note: the motor with magnetic ,so magnetic inspection fee will be incurred during transportation. Please contact shop assistant to supplement it.large quantities can dispense with it



Related Products

model
phase
 stepper angle(°) troque (Nm)
 ratio
 current(A)
 Resistance(Ω)
35YF22GN011R-TF0 2/4 7.5 0.1 1:11 0.4 30
35YF22GN030R-TF0 2/4 7.5 0.3 1:30 0.4 30
35YF22GN075R-TF0 2/4 7.5 0.8 1:75 0.4 30
35YF22GN120R-TF0 2/4 7.5 1 1:120 0.4 30
42YF22GN010S-TF0 2/4 7.5 0.1 1:10 0.4 30
42YF22GN025S-TF0 2/4 7.5 0.3 1:25 0.4 30
42YF22GN030R-TF0 2/4 7.5 0.4 1:30 0.4 30
42YF22GN050S-TF0 2/4 7.5 0.6 1:50 0.4 30
42YF22GN075R-TF0 2/4 7.5 0.8 1:75 0.4 30
42YF22GN120S-TF0 2/4 7.5 1 1:120 0.4 30
