Product Details
Product Description
Product Description

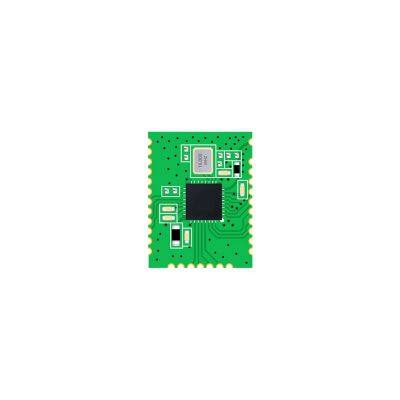

The TS-M1031D is a compact dual-mode Bluetooth module that supports the Bluetooth BLE 5.0 protocol and integrates a high-performance 2.4GHz RF transceiver, a feature-rich baseband processor, an ARM968E-MCU, and various peripheral interfaces, supporting programmable protocols. This module boasts excellent stability, ultra-low cost, minimal power consumption, and high reception sensitivity, making it suitable for a wide range of customer development projects.
Model No.: TS-M1031D
Features
Bluetooth Version: BLE 4.2+SPP 3.0
Frequency Band: 2.402GHz-2.480GHz ISM band
TX Power: -20dBm~+4dBm
Receive Sensitivity: -97dBm
Air Rate: 250Kbps/1Mbps
Antenna: External Antenna
Advise Range: 80m
CPU: ARM968E-S
Size: 15*12*1.5mm
Pin/GPIO: 30/11
Power Supply: 1.8~3.6V
Operating Temperature: -40℃~+85℃
Peripheral Interface: UART/SPI/I2C/ADC, Built-in 10-bit High-Precision ADC
Serial Transparent Transmission Rate: BLE 4KB/s, SPP 16KB/s
Applications
Smart home
Location tracking
Intelligent educational equipment
Measurement and monitoring system
Industrial sensors and controls
Medical equipment monitoring and wireless control
>>
