Product Description
Product Description

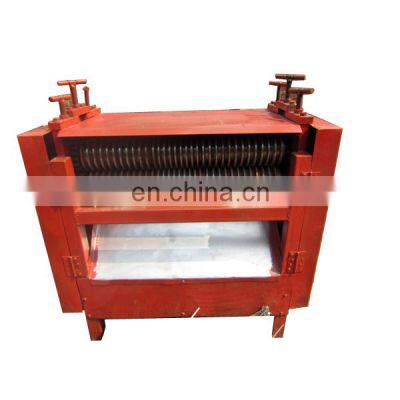

The Brief Introduction of radiator aluminum copper separator : 1. Compose: our radiator aluminum copper separator is composed of motor, reduction box, rack, press roller, blade, and pinch roller and so on. 2. Usage:our radiator aluminum copper separator is use for separating the outside aluminum foil and the inside copper pipe of wasted air conditioning radiator. The copper and aluminum of the radiator are separated by the cut of the blade. After separated, the copper pipe is stay the same, and the aluminum is irregular pieces 3. Applicable: various kinds of used radiators, coppers, and aluminums. 4. Each set of this kind of machine just can separate three different Working Principle of radiator aluminum copper separator : After starting motor, the vee belt drives the compression roller, pinch roller, and blade to rotate through the reduction box. The raw material is compacted and sent to the fly-cutter blade by pinch roller. Then, the radiator is cut up by the fly-cutter blade, the copper pipe is separated, and the aluminum scattered network is cut up. The main parameter of radiator aluminum copper separator: ModelJX-300Motor5.5 kwCapacity2-3T/HMachine weigh1100 kgMachine size1500*1200*1200 mm The related products:Band Saw Machine Machine size:1000*600*1700 mm Weight: 600 kg Motor: 2.2 kw Capacity: it can divide 3-4 layers radiators The pictures of radiator aluminum copper separator Ms Barbara Mobile:0086-15238020768Tel: 0086-0371-65863108Fax:0086-0371-65863109Skype:charcoal68WhatsApp: +86 15238020768Wechat: 0086 15238020768
>>
