Pei Cl11, Green Polyester Film Metal Foil Capacitor (inductive) 50/63/100/250/400V

Product Description

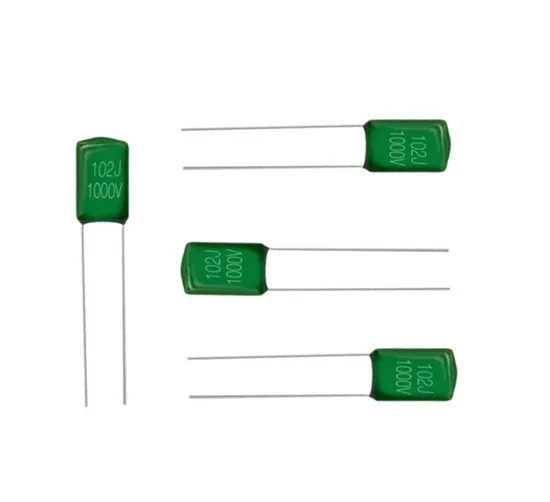

PEI CL11, Green Polyester Film Metal Foil Capacitor (inductive) 50/63/100/250/400V
Product Description
Features 1. Polyester film/foil, inductive wound construction
2. Dissipation factor is small because the leads are welded directly to the electrodes.
3. Flame retardant epoxy resin vacuum-dipped

Typical Applications
Widely used in DC and pulsating circuits of radio, TV sets and various electronic equipments.

Specifications

Reference Standard	GB/T 6346(IEC 60384-11
Climatic Category	40/105/21
Rated Temperature	85ºC
Rated Voltage	50V, 63V/100V,250V,400V
Capacitance Range	0.0001uf~0.10uf
Capacitance Tolerance	±5%(J) , ±10%(K) , ±20%(M)
Voltage Proof	2.0Ur(5s)
Dissipation Factor	≤1.0%(20ºC,1KHz)
Insulation Resistance	≥30 000MΩ, Cr≤0.1uf ≥10 000MΩ, Cr>0.1uf (20ºC,1 min)

Outline Drawing
Dimensions(mm)

Rated Cap.uF	50/63/100VDC					Rated Cap.	250VDC					Rated Cap.	400VDC
	W	H	T	P	d		W	H	T	P	d		W	H	T	P	d
	max	max	max	±1.0	±0.05		max	max	max	±1.0	±0.05		max	max	max	±1.0	±0.05
100pF	7.5	7.5	3.5	5.0	0.5	100pF	7.5	7.5	3.5	5.0	0.5	100pF	7.5	7.5	3.5	5.0	0.5
220pF	7.5	7.5	3.5	5.0	0.5	220pF	7.5	7.5	3.5	5.0	0.5	220pF	7.5	7.5	3.5	5.0	0.5
330pF	7.5	7.5	3.5	5.0	0.5	330pF	7.5	7.5	3.5	5.0	0.5	330pF	7.5	7.5	3.5	5.0	0.5
470pF	7.5	7.5	3.5	5.0	0.5	470pF	7.5	7.5	3.5	5.0	0.5	470pF	7.5	7.5	3.5	5.0	0.5
560pF	7.5	7.5	3.5	5.0	0.5	560pF	7.5	7.5	3.5	5.0	0.5	560pF	7.5	7.5	3.5	5.0	0.5
680pF	7.5	7.5	3.5	5.0	0.5	680pF	7.5	7.5	3.5	5.0	0.5	680pF	7.5	7.5	3.5	5.0	0.5
820pF	7.5	7.5	3.5	5.0	0.5	820pF	7.5	7.5	3.5	5.0	0.5	820pF	7.5	7.5	3.5	5.0	0.5
1000pF	7.5	7.5	3.5	5.0	0.5	1000pF	7.5	7.5	3.5	5.0	0.5	1000pF	7.5	7.5	3.5	5.0	0.5
1200pF	8.0	7.5	4.0	5.0	0.5	1200pF	8.0	7.5	4.0	5.0	0.5	1200pF	7.5	7.5	4.0	5.0	0.5
1500pF	8.0	7.5	4.0	5.0	0.5	1500pF	8.0	7.5	4.0	5.0	0.5	1500pF	8.0	7.5	4.0	5.0	0.5
1800pF	8.0	7.5	4.0	5.0	0.5	1800pF	8.0	7.5	4.0	5.0	0.5	1800pF	8.0	7.5	4.0	5.0	0.5
2200pF	8.0	7.5	4.0	5.0	0.5	2200pF	8.0	7.5	4.0	5.0	0.5	2200pF	8.0	8.0	4.0	5.0	0.5
3300pF	8.0	7.5	4.0	5.0	0.5	3300pF	8.0	7.5	4.0	5.0	0.5	3300pF	8.0	8.5	4.0	5.0	0.5
3900pF	8.0	7.5	4.0	5.0	0.5	3900pF	8.0	7.5	4.0	5.0	0.5	3900pF	8.0	8.5	4.0	5.0	0.5
4700pF	8.0	7.5	4.0	5.0	0.5	4700pF	8.0	7.5	4.0	5.0	0.5	4700pF	8.0	8.5	4.0	5.0	0.5
5600pF	8.0	7.5	4.0	5.0	0.5	5600pF	8.0	7.5	4.0	5.0	0.5	5600pF	8.0	8.5	4.5	5.0	0.5
6800pF	8.0	7.5	4.0	5.0	0.5	6800pF	8.0	7.5	4.0	5.0	0.5	6800pF	8.0	8.5	4.5	5.0	0.5
8200pF	8.0	7.5	4.0	5.0	0.5	8200pF	8.0	7.5	4.0	5.0	0.5	8200pF	8.0	8.5	4.5	5.0	0.5
0.010uF	8.0	7.5	4.0	5.0	0.5	0.010uF	8.5	8.5	4.0	5.0	0.5	0.010uF	8.5	9.0	5.0	5.0	0.5
0.012uF	8.0	7.5	4.5	5.0	0.5	0.012uF	8.5	8.5	4.5	5.0	0.5	0.012uF	8.5	9.5	5.0	5.0	0.5
0.015uF	8.0	8.0	4.5	5.0	0.5	0.015uF	9.0	8.5	4.5	5.0	0.5	0.015uF	9.5	9.5	5.5	5.0	0.5
0.018uF	8.0	7.5	4.5	5.0	0.5	0.018uF	9.5	9.0	5.5	5.0	0.5
0.022uF	8.0	8.0	4.5	5.0	0.5
0.033uF	8.0	8.5	4.5	5.0	0.5
0.039uF	8.0	8.5	5.0	5.0	0.5
0.047uF	9.0	9.5	5.5	5.0	0.5
0.056uF	9.0	9.5	5.5	5.0	0.5
0.068uF	9.0	9.5	5.5	5.0	0.5
0.082uF	9.0	9.5	6.0	5.0	0.5
0.10uF	9.5	9.5	6.5	5.0	0.5
0.22uF	10.0	12.5	8.0	7.5	0.6
0.47uF	12.0	16.5	8.5	7.5	0.6
For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability. For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability.
