Stainless Steel Spice and Herb Grinder Herb Pulverizer Machine Spice Acm Grinder with Brightsail

Product Description

Product Description
Stainless Steel Spice and Herb Grinder Herb Pulverizer Machine Spice ACM Grinder with Price Brightsail
Application:
BSP spice and herb grinder herb pulverizer machine is used to make fine powders from 50-1000 mesh.
This pulverizer has no screen, the different output sizes can be obtained by adjusting the grinding speed.
It's suitable for grinding materials in pharmaceutical, food, chemical and other industries.
For food industry, it can crush grain, peas, spices, ginger, turmeric, garlic, cinnamon, onion, sugar, herbs, leaves, root, seaweed, flowers, mushroom, vegatable, cocoa, coffee beans, rice, wheat, cassava and chickpea and other materials.

Working method:
BSP spice and herb grinder herb pulverizer machine is composed of pulverizing host, cyclone separator, pulse dust collector, blower, electric control box, frame and pipes.
After materials are sent to the milling chamber, it will be sheared and crushed by the blade of high speed rotation. The powders will pass through the guide ring and enter the classifying chamber. Under the action of aerodynamic and centrifugal force, powders larger than the graded particle size will be thrown back to the milling chamber for further crushing. Powders smaller than the critical diameter will enter the cyclone separator and a small part of the super fine dust will enter the pulse dust collector.

Advantages:
No screen, the finished product is very fine and even(smooth), uniform particle size, big capacity, continuous production, no dust fly, power saving,wide application and so on.

Technical data:

Model	BSP-350	BSP-450	BSP-500	BSP-750
Capacity (kg/h)	20-200	40-500	60-800	120-1800
Input size (mm)	< 15	< 15	< 15	< 15
Powder fineness (mesh)	60-2500	60-2500	60-2500	60-2500
Crush motor (kw)	11/15/18.5	18.5/22	30/37	55/75
Grade motor (kw)	1.5	4	5.5	11
Blower (kw)	7.5	11	18.5	37
Feed motor (kw)	0.55	0.55	0.75	1.5
Discharge motor (kw)	0.75	0.75	1.1	1.5
Speed of principle axis (rpm)	6500	5350	4400	3100
Grading impeller speed (rpm)	4000	4000	3500	3000
Overall size(L*W*H) (mm)	5000×1400×2800	5400×1500×2900	6600×2000×3600	9800×2700×4900
Weight (kg)	1600	1600	2300	3100

Structure:
BSP ACM mill unit (micron pulverizer) consists of 6 parts:
1.Crusher part (crusher, cutter inside mill chamber, water cooling jacket)
2.Cyclone part (cyclone,rotary valve, air hammer is optional)
3.Pulse dust collecting box (dust collecting box, pulse,dust collecting bags with disassembled frames)
4.Blower
5.Electric cabinet (Standard type is button switch,PLC is optional)
6. Connecting pipes and brackets

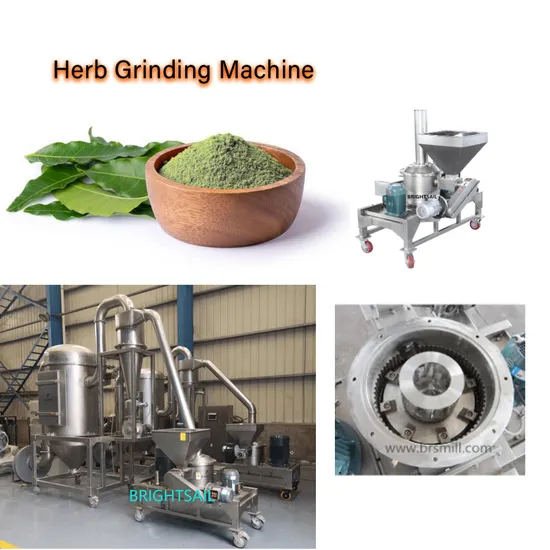

spice and herb grinder herb pulverizer machine pictures:
Product pictures:
Packaging & Shipping
Export standard package. Wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film.
Then, fix them in container with steel to avoid any shaking or moving during the shipping.
Company Profile
Jiangyin Brightsail Machinery Co.,Ltd, Brightsail Industries Group Co.,Ltd. (the trade dept) and Jiangyin Hengsheng Steel Structure
Co.Ltd which is established in 2002.
With our own factory, more than 20 years' experience, 70+ workers, 6 professional engineers, more than 10 years' experienced technicians, advanced equipment, CE, ISO9001 and material certificates, 1 hour reach Shanghai port; this is how we ensure superior quality, competitive offers and high efficiency for global valued customers.
We provide professional powder processing overall solution, grinder, mixer,packing machine, sifting machine, conveyor machine,
welding service, welding machine...etc.
We have sold our products to more than 80 countries around the world for now.
Our products are well received by customers at home and abroad.
After Sales Service
Pre-Sales Service
* Inquiry and consulting support with 24 hours
* Sample testing support.
* View our Factory.
After-Sales Service
* Instructing how to install and use the machine;
* One year warranty;
* Video support;
* Engineer is available to go to user's factory to help install and train.
Customer Reviews:
FAQ:
To send you a detailed quotation of a suitable grinder machine, could you tell me:
1)What specific materials do you need to grind?
2)What capacity do you want? Such as, 10kg/h, 50kg/h, 100kg/h, 500kg/h...etc.
3)What the fineness of finished products do you need? Such as, 1-5mm, 20mesh, 60 mesh, 100mesh...etc.

---
