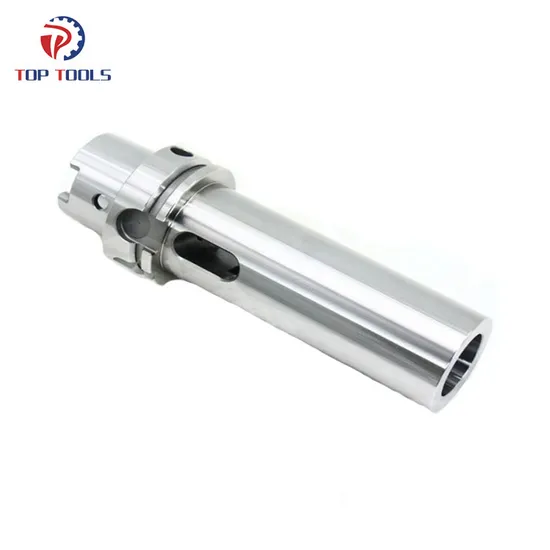

Hsk Shank Morse Taper Hsk100A Mta3 150 Collet Chuck for CNC Machine

Product Description

1,Material: 20CrMnTi
2,Production standard: DIN69893
3,dynamic balance: G6.3 15000RPM G2.5 30000RPM
4,precision: ≤0.005mm
5,Hardness:HRC56-60 ,carbon depth >0.8mm
6,shank:HSK short cone shank type A
7,Usage:HSK high speed collets chuck holders are applied for a variety of processing, including engraving drilling, milling ,tapping & grinding and so on.
HSK shank MTA morse taper mill tools is our new products. they have been exported many times such as Germany Korea and so on.their quality and precision is very high.the clients are satisfied with them.
Technical specification

Model	L	L1	D	D1	MT
HSK63A-MTA1-100	100	74	Φ63	Φ25	1
HSK63A-MTA2-120	120	94	Φ63	Φ32	2
HSK63A-MTA3-140	140	114	Φ63	Φ40	3
HSK63A-MTA4-160	160	134	Φ63	Φ48	4
HSK100A-MTA1-110	110	81	Φ100	Φ25	1
HSK100A-MTA2-120	120	91	Φ100	Φ32	2
HSK100A-MTA3-150	150	121	Φ100	Φ40	3
HSK100A-MTA4-170	170	141	Φ100	Φ48	4
HSK100A-MTA5-200	200	171	Φ100	Φ63	5

Our Advantage
1,Manufacture Factory
We are the industry and trade integration company .we have our own manufacture factory.
2,Quality Control:
During production process ,every part be checked .every product will be checked before the delivery.
the overall accuracy be checked by precision detector.the dynamic balance be checked by dynamic balance HAIMER detector.
3,Professional Sales Team
Our sales team have the professional export experience,can contact with the customer frankly.
4,Delivery in time
as we have our own manufacture factory ,the order delivery time can be control.
5,Good after Sales Service
Our company provides good after sales service as per customers requirement.
Our Services
I Fast reply
II Favourable price
III High quality products
IV Fast delivery
VI Good after-sales service
Packaging & Shipping
Contact information
More information to company, copy the official website link er-collet.en.made-in-china.com for reference.

---
