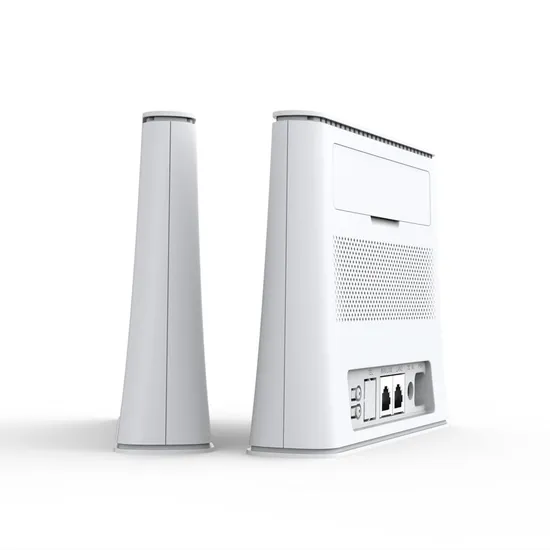

4G Cat12 Module 600Mbps High Speed CPE LTE Wireless 802.11AC WiFi with 4*4 MIMO Antenna

Product Description

4G CAT12 module 600mbps high speed CPE LTE wireless 802.11ac WIFI with 4*4 MIMO antenna
• Supports Route Function. NAT/NAPT, RIP v1/v2 .
• Supports SPI, ACL, and prevents DoS attacks, Parental control. WPA, WPA2, WPA-PSK, WPA2-PSK, WPS security for WLAN.
• Supports PSK. • Supports WebGui credentials.
• Supports Protocols. TR069 ,PPOE, DHCP etc.
• Supports Port Filter, DMZ, Port Forwarding, NAT (Network Address Translation), MAC address Filter, IP address Filter, SIP ALG, SNMP etc.
• Supports Access Control .URL White and Black list, IP Address White and Black List.
• Supports FOTA Updates (Firmware Over The Air), Manual Firmware Updates.
• Supports Router Settings Backup, SNTP (Simple Network Time Protocol).
• Supports Diagnostic tools (PING, ARP, Router Logs).

Item	Description
Chip Platform	MTK7621 + Qualcomm modem
VPN feature	Supports OpenVPN, IPSEC VPN,PPTP,L2TP etc VPN feature.
SIM Card	1.8V/3V 3FF USIM
Button	Reset/Reboot
Power Supply	DC 12V/1A
3G 4G data connection	It provides data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks.
Weight	<200g
Port	1* RJ45 for 1 WAN + 1 LAN ,1000Mbps ports
Dimensions	187mm(H) x 167mm(W) x 75mm(T)
Frequency Bands	Version E. LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32(Optional) LTE-TDD: B38/B40/B41/B42(Optional) /B43(Optional) WCDMA: B1/B3/B5/B8 Verison A. LTE-FDD: B2/B4/B5/B7/B12/B13/B14B25/B26/B29/B30/B66/B71 LTE-TDD: B41/B48 Version LA. LTE-FDD: B2/B4/B5/B7/B8/B28/B66 LTE-TDD: B42(Optional) /B43(Optional) WCDMA: B2/B4/B5/B8	V4G LTE--CAT 6 LTE-FDD Max 300M(DL) , Max 50Mbps (UL) LTE-TDD Max 226M (DL) , Max 28Mbps (UL). 4G LTE-CAT 12 LTE-FDD. Max 600Mbps (DL),Max 150Mbps (UL) . LTE-TDD. Max 430Mbps (DL),Max 90Mbps (UL). HSPA+. DL 42Mbps, UL 11.2Mbps. WCDMA. DL 384Kbps, UL 384Kbps
