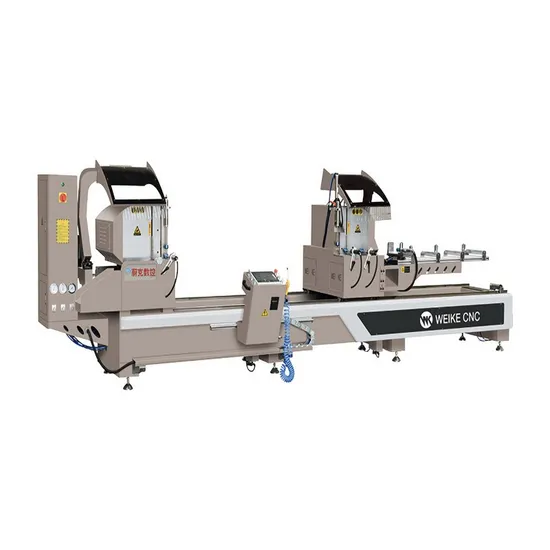

High Precision Aluminum Window Door CNC Double Head Cutting Saw

Product Description

500mm CNC Double Head Sawing Machine The 500 saw blade double head cutting off machines are used for cutting aluminium, UPVC and light alloy profiles, ideal for mass production and special applications as they guarantee great reliability. The present Series, provided with highrigidity, are equipped with two independent cutting heads, and the right cutting head is automatically moved by a CNC DC motor. The machine can be provided with an industrial label printer to enable profile identification and association with relative job.
1. Main Feature
Used for cutting aluminum alloy doors and windows and facade profiles.
It uses a numerical control unit to accurately display the length of the cutting profile.
High-precision spindle ensures stable rotation of the saw blade.
Gas-liquid damping cylinder ensures smooth forward speed regulation and stable movement.
Automatically liftable protective hood for safe and comfortable work.
The feeding system uses an imported pair of linear guides with high precision and long service life.

2. Technical Parameter
Cutting angle: 90°45°
Cutting length: 290~6000mm
Overall dimension: 5800 x 1500 x 1700mm
Weight about: 1650kg
Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)
Power supply: 380V/50Hz (Can make according your voltage)
Air pressure: 0.6~0.8MPa
Motor rotary speed: 2800r/min
Saw blade specification: φ500 / φ600

Option:

1	Saw Blade: 500/550/600mm
2	Printer
3	Connect with windows design software
4	Main Spindle and Motor Option
5	Cutting length Option
6	Have different machine frame

3. Update Saw During Production: 3. Machine Details And Advantage

CNC Control, cutting length, cutting angle control are all automatic. Have printing function, so can print clients info and profile info.
1. Use planer to ensure the flatness of the mounting guild rails 2. Guild is 40mm diameter, two guild distance is 700mm, More stable The machine inside design to slope, more easy for chips clean
Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity, so precision more high
Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast. Saw blade come out and come back are the same speed
Most supplier the angle fix is point to point, may easy broken and have some problem after using long time, we upgrade to point to face, so enlarge use time.
Right head and left head have own lubrication, so oil can be more average
